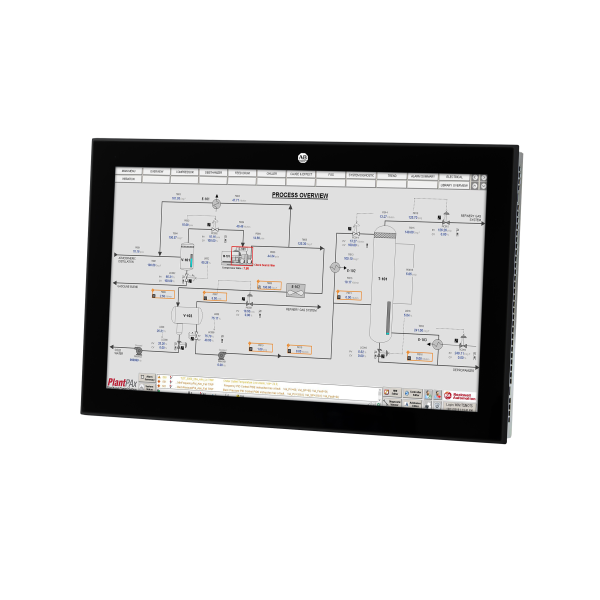

      ASEM 6300M 12.1 in. Aluminum Monitor

      SKU: 6300M-121BAPSXAN1S

      Out of stock

      Availability: Out of Stock

      Short Description
      Description: The VersaView 6300M-121BAPSXAN1S is a 12.1-inch industrial monitor intended for use in harsh environments and high-performance visualization. It has an XGA resolution (1024 × 768) and an analogue resistive touchscreen, making it appropriate for usage with gloves and styluses in industrial environments. This model is part of the VersaView 6300M series, which features open architecture, adaptability, and interoperability with Rockwell's FactoryTalk® software package. It is suited for HMI (Human Machine Interface) applications, control rooms, and machine panels. Key Features: Display: 12.1" TFT LCD, XGA resolution. Touchscreen: Analog resistive (glove-compatible). Bezel: Standard aluminium. Mounting: Panel mount. Power: 100–230V AC input. Connectivity: VGA, DVI-D, USB 2.0 (front and rear). Environmental Rating: IP66 front panel protection. Certifications: CE, UL, KC, RCM, EAC (as of July 2025). Operating Temp: 0°C to +50°C.
      6300M-121BAPSXAN1S
      Alternative image 1
      Display & Touchscreen: Screen Size: 12.1 inches. Resolution: XGA (1024 × 768). Aspect Ratio: 4:3. Touchscreen Type: Analog resistive (glove-compatible). Backlight: LED, TFT LCD. Brightness: ~400 nits typical. Viewing Angle: Wide-angle visibility for industrial use. Mechanical & Mounting: Bezel Material: Aluminium. Design: Standard bezel. Mounting Type: Panel mount. Front Panel Protection: IP66-rated (dust and water resistant). Touch Calibration: Field-calibratable using eGalaxTouch driver. Connectivity: Video Inputs: 1 × VGA. 1 × DVI-D. USB Ports: 2 × USB 2.0 (rear Type-A). 1 × USB 2.0 (front Type-A). Power Input: 100–230V AC. Power Isolation: Designed for industrial environments with isolated AC input. Environmental Ratings: Operating Temperature: 0°C to +50°C. Storage Temperature: –20°C to +60°C. Certifications: CE. UL (USA/Canada). KC. RCM. EAC (Eurasian Economic Community).
