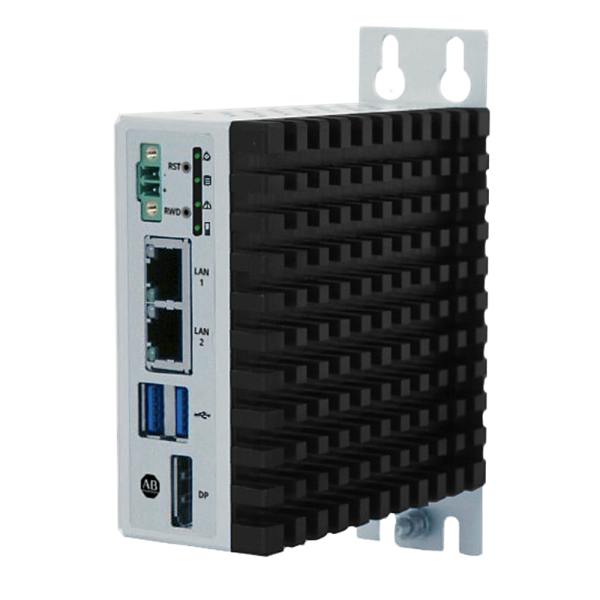

VersaView 6300T Box Thin Client
SKU: 6300T-BAB1DC-ABNNNN-N1S
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The ASEM™ 6300T Box Thin Client is a fan-less industrial device that enables centralized visibility and control in demanding situations.
It is part of Rockwell Automation's ThinManager® Ready environment, which enables the secure and scalable deployment of thin client architecture in industrial facilities.
Key Features:
Processor Options:
Intel® Apollo Lake Atom x7-E3950 (1.6 GHz, burst up to 2.0 GHz).
Intel® Celeron® 6305E (1.8 GHz, 10 nm, 2 cores / 4 threads).
Memory: Up to 8 GB RAM.
Storage: No pre-installed SSD (customizable).
Display Support:
Single, dual, or quad DisplayPort++ v1.2.
Supports up to 4K resolution (4096 × 2160 @ 60 Hz).
Connectivity:
4 × Ethernet (10/100/1000/2500 Mbps, Intel i226).
2 × USB 3.0.
RS-232/422/485 (isolated, DB9M on quad-display models).
Mounting: Book mount.
Power Input: 24 VDC.
Operating System: No OS pre-installed (ThinManager® Ready BIOS).
Buy currently uses Select Automation shop pricing and checkout.
VersaView 6300M-121BAPSXAN1S Monitor:
Display Size: 12.1 inches.
Resolution: 1024 × 768 (XGA).
Aspect Ratio: 4:3.
Touchscreen: Analog resistive (glove-compatible).
Brightness: ~400 nits.
Backlight: LED.
Bezel: Standard aluminium.
Mounting: Panel mount.
Front Panel Protection: IP66-rated.
Video Inputs: VGA and DVI-D.
USB Ports:
2 × USB 2.0 (rear).
1 × USB 2.0 (front).
Power Input: 100–230V AC.
Operating Temperature: 0°C to +50°C.
Certifications: CE, UL, KC, RCM, EAC.
Lifecycle Status: Active (as of July 2025).
ASEM 6300T Box Thin Client:
Processor Options:
Intel Atom x7-E3950 (1.6 GHz, burst to 2.0 GHz).
Intel Celeron 6305E (1.8 GHz, 10 nm).
Display Support:
1, 2, or 4 × DisplayPort++ v1.2.
Up to 4096 × 2160 @ 60 Hz.
Ethernet Ports: 4 × RJ45 (10/100/1000/2500 Mbps).
USB Ports: 2 × USB 3.0.
Serial Port: RS-232/422/485 (on quad-display models).
Mounting: Book mount.
Power Input: 24 VDC.
Software: ThinManager® Ready BIOS (no OS pre-installed).
Environment Requirements:
Industrial or control room use.
Pollution Degree 2, Overvoltage Category II.
Altitude up to 2000 m without derating.
Certifications: UL/cUL, CE, UKCA, CSA.
