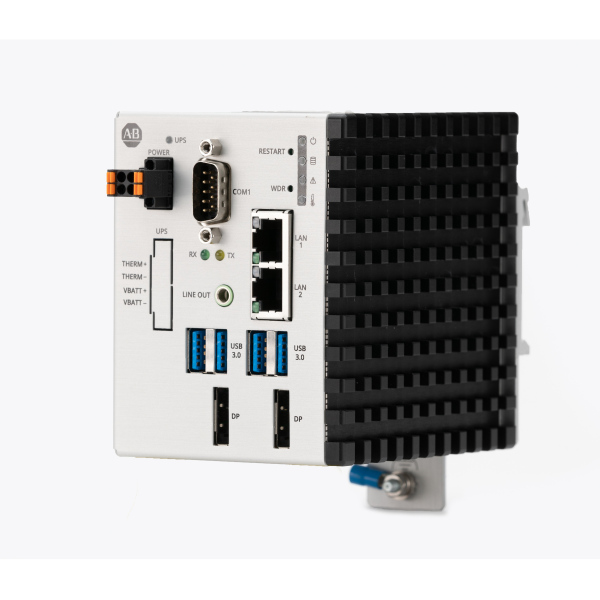

VersaView 6300T Dual Display Thin Client
SKU: 6300T-BBB2DA-ACNNNN-N1S
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The ASEM 6300T is a ThinManager®-compatible industrial thin client built for high-performance visualization in demanding situations.
It's part of the VersaView 6300T line and can support dual 4K displays via DisplayPort outputs, making it perfect for applications that require a large screen and high clarity.
Key Features:
Processor: Intel® Atom Apollo Lake.
Memory: 8 GB RAM.
Storage: No onboard SSD (boots via ThinManager®).
Display Support: Dual DisplayPort++ v1.2, up to 4096 × 2160 resolution.
Power: 24 VDC isolated input.
Mounting: Book mount form factor.
Cooling: Fan-less design for silent operation and low maintenance.
Connectivity: Dual Gigabit Ethernet, USB 3.0 ports.
Certifications: UL, CE, UKCA, CSA.
Buy currently uses Select Automation shop pricing and checkout.
System Overview:
Model: 6300T-BBB2DA-ACNNNN-N1S.
Type: VersaView 6300T Box Thin Client.
Processor: Intel® Atom (Apollo Lake).
Memory: 8 GB RAM.
Storage: No SSD included (boots via ThinManager® network).
Operating System: ThinManager® Ready BIOS.
Cooling: Fan-less design for silent, low-maintenance operation.
Display Support:
Video Outputs: 2 × DisplayPort++ v1.2.
Max Resolution: Up to 4096 × 2160 @ 60 Hz (dual 4K support).
Connectivity:
USB Ports: 2 × USB 3.0.
Ethernet: Dual Gigabit Ethernet ports.
Power Input: 24 VDC isolated.
Mounting: Book mount.
Expansion: No UPS, no additional expansion slots.
Environmental & Certifications:
Operating Temperature: Typically, 0°C to +50°C.
Certifications: UL, CE, UKCA, CSA.
Lifecycle Status: Active.
Warranty: Standard Allen-Bradley warranty.
Use Cases:
Human Machine Interface (HMI).
IIoT Gateway.
Data Logging.
Centralized visualization via ThinManager®.
