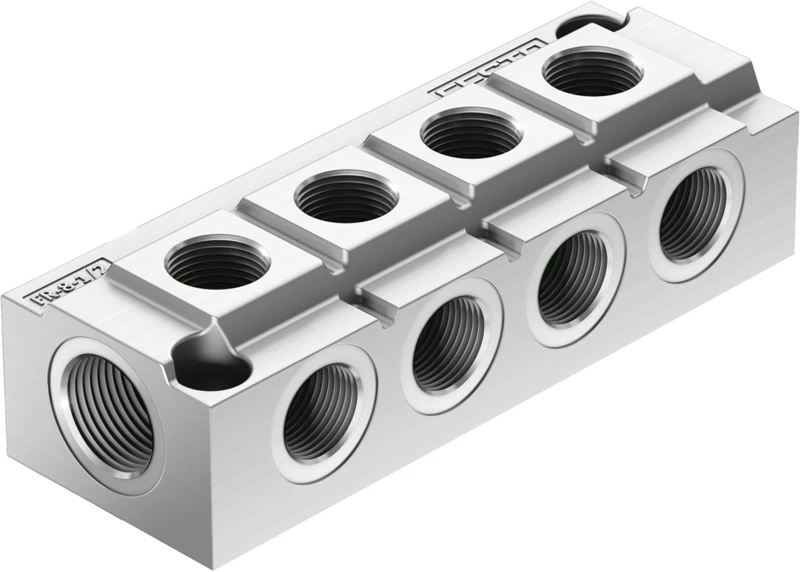

Distributor block, FR-8-1/2

Specifications • Distribution manifolds FR • Nominal size 18.6 mm • Mounting position optional • Operating pressure complete temperature range 0 bar ... 16 bar • Operating medium Compressed air to ISO 8573-1:2010 [7:-:-] • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) • Corrosion resistance class CRC 0 - No corrosion stress • LABS (PWIS) conformity VDMA24364-B1/B2-L • Ambient temperature -10 °C ... 60 °C • Nominal torque 35 Nm • Tolerance for nominal tightening torque ± 10% • Product weight 1000 g • Number of outputs 8 • Number of supply lines 1 • Pneumatic connection, port 1 Female thread G3/4 • Pneumatic connection, port 2 Female thread G1/2 • Note on materials RoHS-compliant • Material housing Die-cast aluminium
