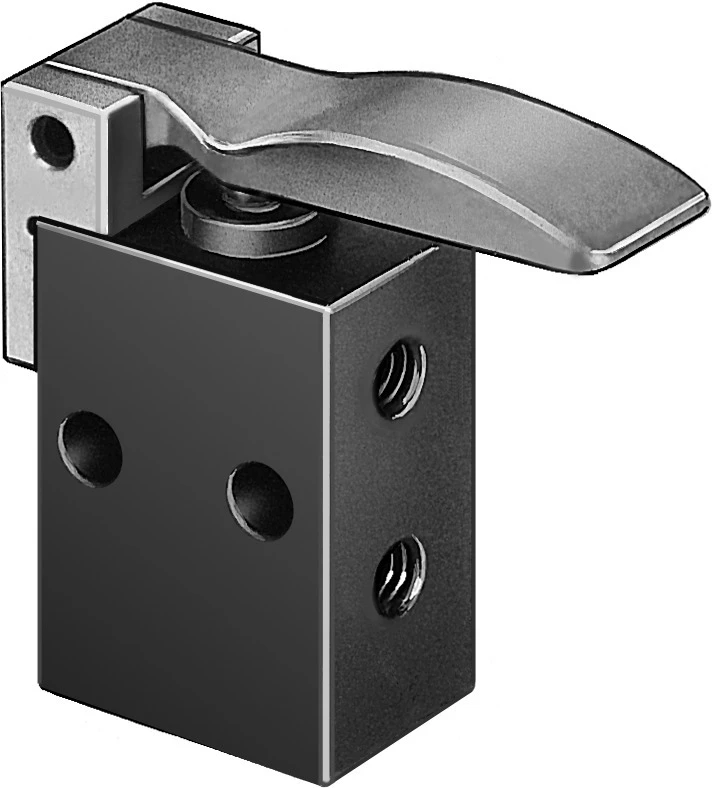

Finger lever valve, TH-3-M5

Specifications • Manually operated valves, Finger lever valve • Valve function 3/2-way, closed, monostable • Standard nominal flow rate (standardised to DIN 1343) 80 l/min • Pneumatic working port M5 • Operating pressure -0.95 bar ... 8 bar • Design Poppet seat • Nominal size 2 mm • Type of piloting Direct • Symbol 00991100 • Operating medium Compressed air to ISO 8573-1:2010 [-:-:-] • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) • LABS (PWIS) conformity VDMA24364-B1/B2-L • Ambient temperature -10 °C ... 60 °C • Actuating force 8 N • Product weight 37 g
