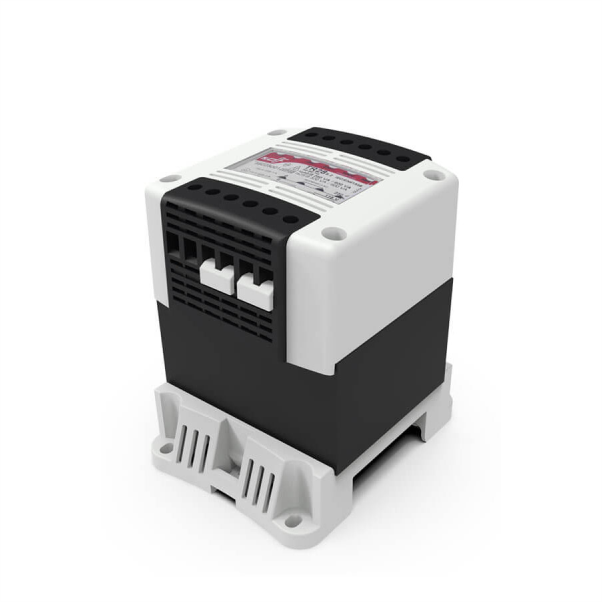

630VA 240/400/525-115/230V TRANSFORMER

Specifications SERIES: TR 28 series DESCRIPTION: Control and safety transformer PRIMARY VOLTAGES: 240V - 400V - 525V (with regulation taps + and - 20V) SECONDARY VOLTAGES: 115 - 230V THERMAL CLASS: B (130°C) TYPE: Class 1 FREQUENCY: 50/60 Hz PROTECTION INDEX: IP20 POWER (VA) 25°C: 630 POWER (VA) 40°C: 500 INRUSH (VA): 1275 WEIGHT (KG): 7.08 DIMENSIONS (MM): (H) 152 x (W) 120 x (D) 156 Features: Thermal class: B (130°C) Class: Class I Frequency: 50/60 Hz DIN rail mountable (up to 400VA) Secondary voltages: 12 - 24V (or) 115 - 230V Protection degree: IP20 protection (finger safe) Dielectric strength: Primary - secondary 4.5kV Standards: IEC/EN 61558-1, IEC/EN 61558-2-2 /-2-4 /-2-6 Serial-parallel secondary bridge pieces for ease of connection Primary voltages: 240V - 400V - 525V (with regulation taps + and - 20V) High-capacity clamp terminals (10 mm2 up to 400VA / 25 mm² up to 1250VA) High-flexibility - several primary rated voltages (with regulation taps +20V or -20V)
