Sprint 680i Compact DC Drives Series
SKU: 680i
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

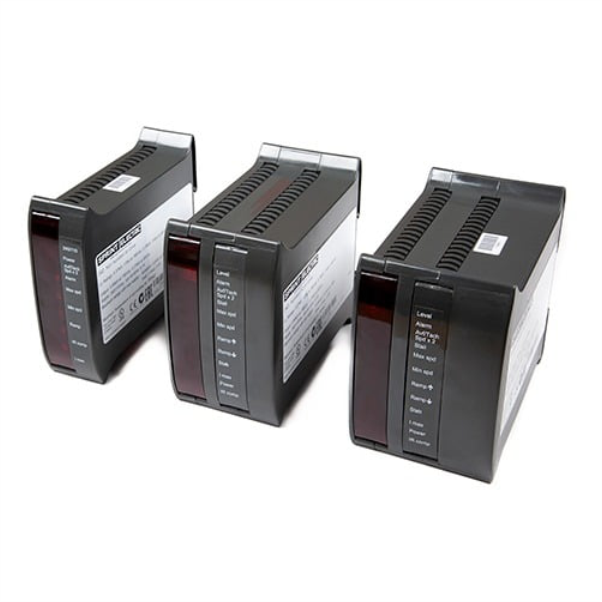

The Sprint 680i Compact DC Drive, which is intended to regulate small brushed or permanent magnet DC motors, is a member of the Sprint Electric 340/680/1220 Series.
The ultra-compact DIN rail mounting of this drive is well-known for saving panel space and facilitating simple installation.
DC motors with an output power of up to 0.75kW can use the 680i model because it has an output current of up to 6.8A.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Power: Up to 0.75kW (1HP).
Output Current: 6.8A.
Mounting: DIN rail.
Cooling: Fully isolated control electronics.
Adjustable IR Compensation: For improved AVF speed regulation.
Selectable Dual Voltage AC Supply: 100-130V or 200-264V.
User Adjustable: Max motor speed, min motor speed, up ramp, down ramp, stability, Imax, IR comp, AVF/Tach switch, speed range switch, AC voltage selector, signal level comparator.
Protection: 150% overload with stall protection.
Additional Features: Push-button reversing function, easy to access drive adjustments, plug-on screw terminals.
