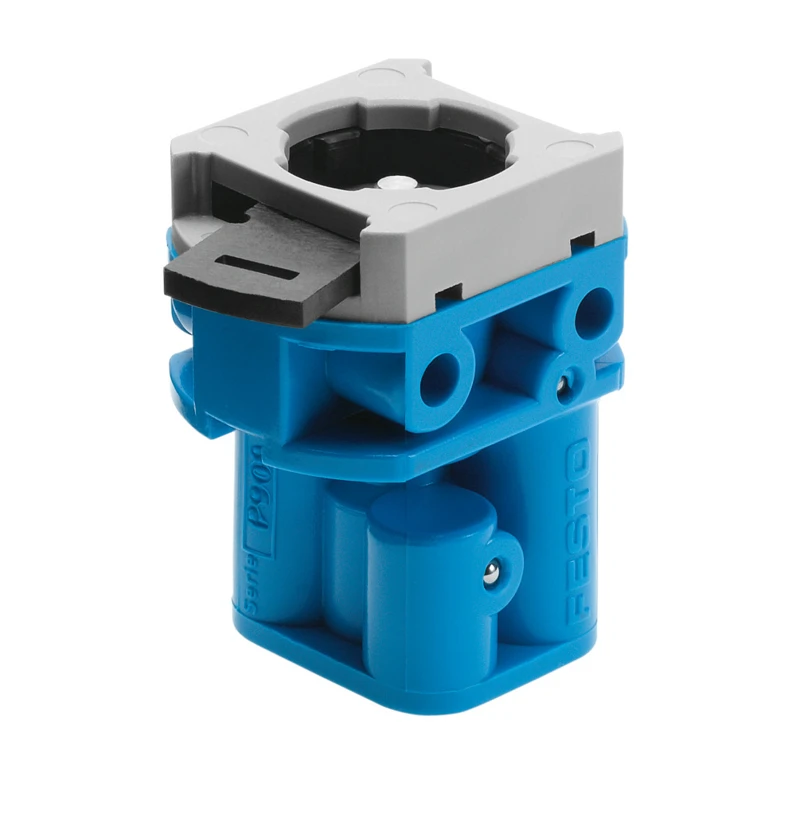

Front panel valve, SV-3-M5
SKU: 6817
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Front panel valves SV
• Valve function 3/2-way, closed, monostable
• Type of actuation Manual
• Standard nominal flow rate (standardised to DIN 1343) 65 l/min
• Operating pressure -0.095 MPa ... 0.8 MPa
• Operating pressure -0.95 bar ... 8 bar
• Design Poppet valve with spring return
• Type of reset Mechanical spring
• Nominal size 2 mm
• Sealing principle Soft
• Mounting position optional
• Type of piloting Direct
• Flow direction Non-reversible
Buy currently uses Select Automation shop pricing and checkout.
Front panel valve M5 SV
• For actuator attachments such as pushbutton actuators, mushroom pushbuttons, mushroom pushbuttons with detent, selector switches or toggle switches
• Reliable coupling system for quick mounting and dismounting
• Polymer design
