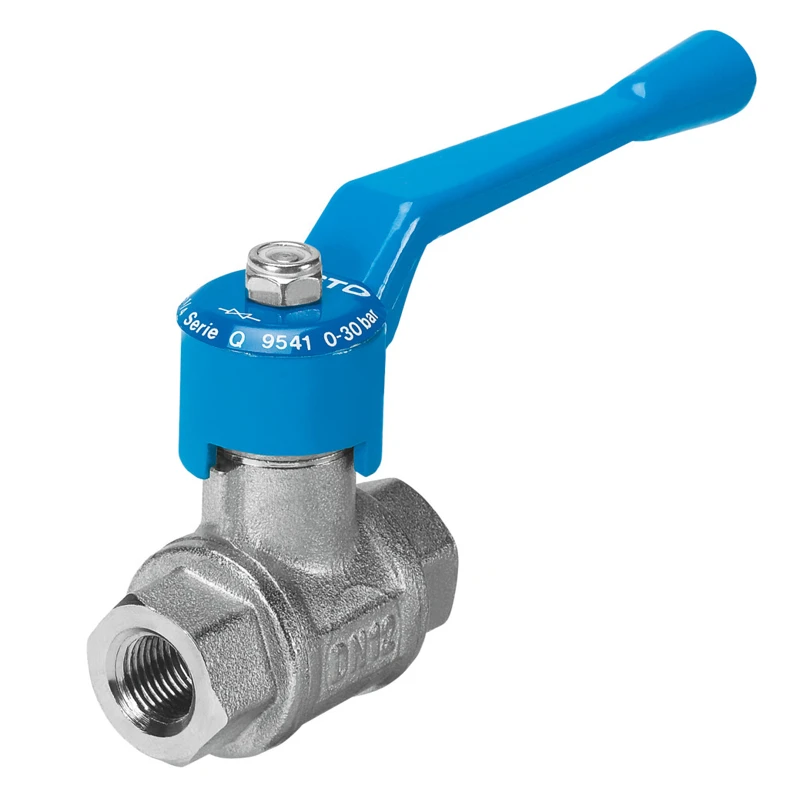

Ball valve, QH-1 1/2
SKU: 6837
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Ball valves QH, manual
• Valve function 2/2 double solenoid
• Pneumatic connection, port 1 G1 1/2
• Pneumatic connection, port 2 G1 1/2
• Type of actuation Manual
• Type of mounting In-line installation
• Standard nominal flow rate (standardised to DIN 1343) 84000 l/min
• Nominal size 40 mm
• Material housing Brass
• Sealing principle Soft
• Mounting position optional
• Conforms to standard ISO 228-1
• Design Ball valve
Buy currently uses Select Automation shop pricing and checkout.
Ball valve QH
• Manually operated shut-off valve in sturdy polymer design.
• Shut-off valve, manually operated
• In-line installation
• Female thread at both ends
• With hand lever
• Pipe thread to ISO 2281
