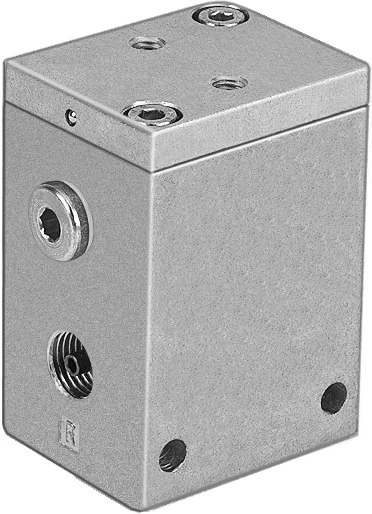

Vacuum generator, VAK-1/4

Specifications • Vacuum generators VAD/VAK • Nominal size, Laval nozzle 1 mm • Mounting position optional • Ejector characteristic High vacuum • Integrated function Ejector pulse, pneumatic • Design T-shape • Symbol 00991484 • Operating pressure 0.15 MPa ... 1 MPa • Operating pressure 1.5 bar ... 10 bar • Operating pressure 21.75 psi ... 145 psi • Max. vacuum 80 % • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
