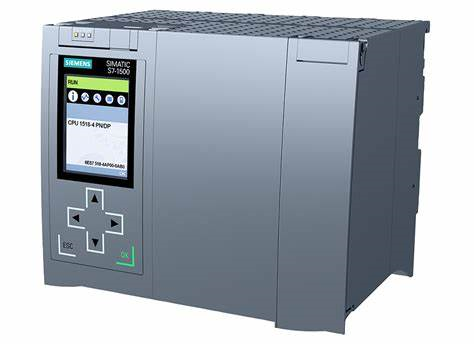

Siemens S7-1500 SIPLUS CPU 1518-4 PN/DP
SKU: 6AG1518-4AP00-4AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The SIPLUS S7-1500 CPU 1518-4 PN/DP, based on 6ES7518-4AP00-0AB0, has a conformal coating, operates at 0…+60 °C, and has 4 MB of program memory and 20 MB of data storage.
First interface: PROFINET IRT with a two-port switch.
Second interface: Ethernet.
3rd interface: Ethernet.
4th interface: PROFIBUS with 1 ns bit performance.
SIMATIC Memory Card is required.
Buy currently uses Select Automation shop pricing and checkout.
General information:
Product type designation: CPU 1518-4 PN/DP.
based on: 6ES7518-4AP00-0AB0.
Product function:
Isochronous mode: Yes.
Display:
Screen diagonal [cm]: 6.1 cm.
Control elements:
Number of keys: 6.
Mode selector switch: 1.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
Input current:
Current consumption (rated value): 1.55 A.
Inrush current, max.: 2.4 A; Rated value.
I²t: 0.45 A²·s.
Power:
Infeed power to the backplane bus: 12 W.
Power consumption from the backplane bus (balanced): 30 W.
Power loss:
Power loss, typ.: 24 W.
Memory:
SIMATIC memory card required: Yes.
Work memory:
integrated (for program): 4 Mbyte.
integrated (for data): 20 Mbyte.
Load memory:
Plug-in (SIMATIC Memory Card), max.: 32 Gbyte.
Backup:
maintenance-free: Yes.
CPU processing times:
for bit operations, typ.: 1 ns.
for word operations, typ.: 2 ns.
for fixed point arithmetic, typ.: 2 ns.
for floating point arithmetic, typ.: 6 ns.
CPU-blocks:
Number of blocks (total): 10 000.
DB:
Number, max.: 10 000; Number range: 1 to 65535.
Size, max.: 10 Mbyte.
FB:
Number, max.: 9 998; Number range: 1 to 65535.
Size, max.: 512 kbyte.
FC:
Number, max.: 9 999; Number range: 1 to 65535.
Size, max.: 512 kbyte.
OB:
Size, max.: 512 kbyte.
Number of free cycle OBs: 100.
Number of time alarm OBs: 20.
Number of delay alarm OBs: 20.
Number of cyclic interrupt OBs: 20.
Number of process alarm OBs: 50.
Number of DPV1 alarm OBs: 3.
Number of isochronous mode OBs: 2.
Number of technology synchronous alarm OBs: 2.
Number of startup OBs: 100.
Number of asynchronous error OBs: 4.
Number of synchronous error OBs: 2.
Number of diagnostic alarm OBs: 1.
Nesting depth:
per priority class: 24.
Dimensions:
Width: 175 mm.
Height: 147 mm.
Depth: 129 mm.
Weights:
Weight, approx.: 1 988 g.
