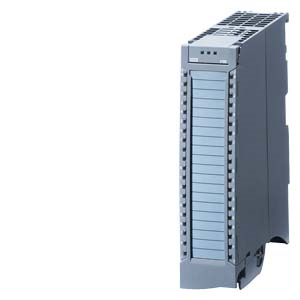

Siemens S7-1500 SIPLUS SM 521 Digital input modules DI 16X24VDC HF
SKU: 6AG1521-1BH00-7AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This module provides 16 digital inputs grouped together, optimized for high-frequency signal acquisition, hardware interrupts, and diagnostics.
With a wide operating temperature range and conformal coating, it’s ideal for outdoor, marine, or process environments where reliability under stress is critical.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Input Channels: 16 (IEC 61131 Type 3).
Input Voltage Range: 19.2–28.8 VDC (Rated: 24 VDC).
Input Delay: 0.05–20 ms (parameterizable).
Input Current (typical): 2.5 mA.
Max Counting Frequency: 6 kHz (2 counters, 32-bit).
Power Loss: ~2.6 W.
Backplane Bus Consumption: 1.1 W.
Isolation Test Voltage: 707 VDC.
Cable Length: Up to 1000 m shielded / 600 m unshielded.
Mounting Dimensions (W×H×D): 35 × 147 × 129 mm.
Weight: ~240 g.
Environmental & Compliance:
Operating Temp: –40 °C to +70 °C.
Humidity: Up to 100% RH with condensation/frost.
Conformal Coating: Class 2 (EN 61086), IPC-CC-830A compliant.
Protection Class: IP20.
Approvals: CE, UL, RCM, ATEX, IECEx, DNV, KC.
Global Warming Potential: 18.9 kg CO₂ eq (lifecycle).
