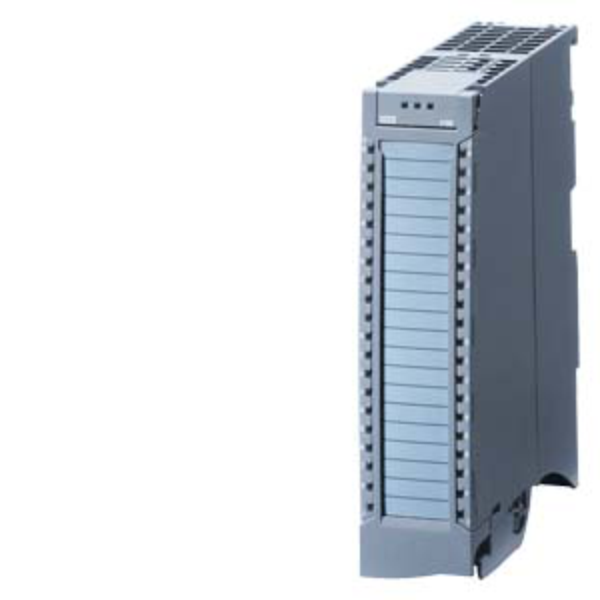

Siemens S7-1500 SIPLUS SM 521 Digital input modules SIPLUS S7-1500 DI 16X230VAC BA
SKU: 6AG1521-1FH00-7AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This module provides 16 digital inputs rated for 120/230 V AC, making it ideal for interfacing with line-voltage sensors, switches, and contactors.
With conformal coating and extended temperature range, it’s built for marine, mining, and outdoor process control applications where environmental resilience is critical.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Input Channels: 16 (grouped in sets of 4).
Rated Input Voltage: 230 V AC (120–230 V AC, 50/60 Hz).
Input Signal Thresholds: “0”: 0–40 V AC; “1”: 79–264 V AC.
Input Current: ~11 mA @ 230 V AC / ~6.5 mA @ 120 V AC.
Input Delay: Fixed: 25 ms ON/OFF.
Power Loss: ~4.9 W.
Backplane Bus Consumption: ~1 W.
Isolation Test Voltage: 3,100 V DC.
Cable Length: 1000 m shielded / 600 m unshielded.
Mounting Dimensions (W×H×D): 35 × 147 × 129 mm.
Weight: ~200 g.
Environmental & Compliance:
Operating Temp: –40 °C to +70 °C.
Humidity: Up to 100% RH with condensation/frost.
Conformal Coating: Class 2 (EN 61086), IPC-CC-830A compliant.
Protection Class: IP20.
Isolation Between Channels: 250 V AC.
Approvals: CE, UL, RCM, ATEX, IECEx, DNV, KC.
Global Warming Potential: 18.9 kg CO₂ eq (lifecycle).
