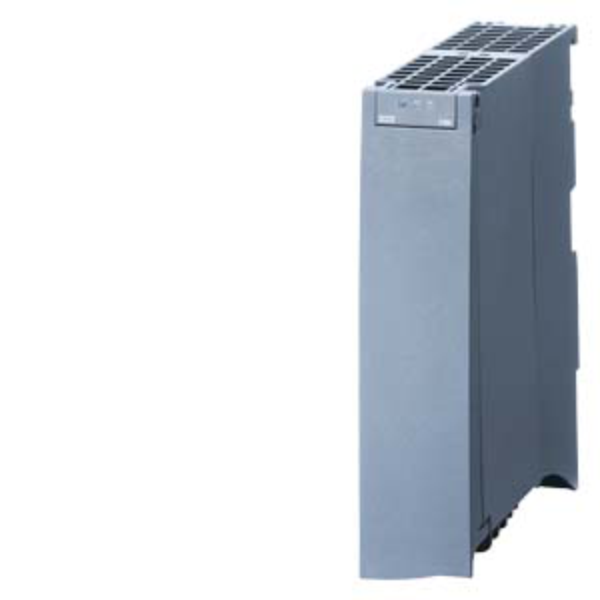

Siemens S7-1500 SIPLUS SM 522 Digital output modules SIPLUS S7-1500 DQ 8X24VDC/2A HF
SKU: 6AG1522-1BF00-7AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This module provides 16 digital outputs, each capable of sourcing up to 0.5 A at 24 VDC, optimized for high-frequency switching, diagnostics, and short-circuit protection.
With extended temperature tolerance and conformal coating, it’s ideal for outdoor, marine, and process-critical installations where environmental resilience and output reliability are essential.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Channels: 16 (grouped in sets of 8).
Rated Output Voltage: 24 VDC (range: 19.2–28.8 VDC).
Output Current per Channel: Max 0.5 A.
Total Current (per group): Max 3 A.
Switching Frequency: Up to 1 kHz resistive / 10 Hz inductive.
Short-Circuit Protection: Yes (per channel).
Diagnostics: Channel diagnostics, wire break, short.
Power Loss: ~3.5 W.
Backplane Bus Consumption: ~1.1 W.
Isolation Test Voltage: 707 VDC.
Mounting Dimensions (W×H×D): 35 × 147 × 129 mm.
Weight: ~250 g.
Environmental & Compliance:
Operating Temp: –40 °C to +70 °C.
Humidity: Up to 100% RH with condensation/frost.
Conformal Coating: Class 2 (EN 61086), IPC-CC-830A compliant.
Protection Class: IP20.
Approvals: CE, UL, RCM, ATEX, IECEx, DNV, KC.
Global Warming Potential: ~18.9 kg CO₂ eq (lifecycle).
