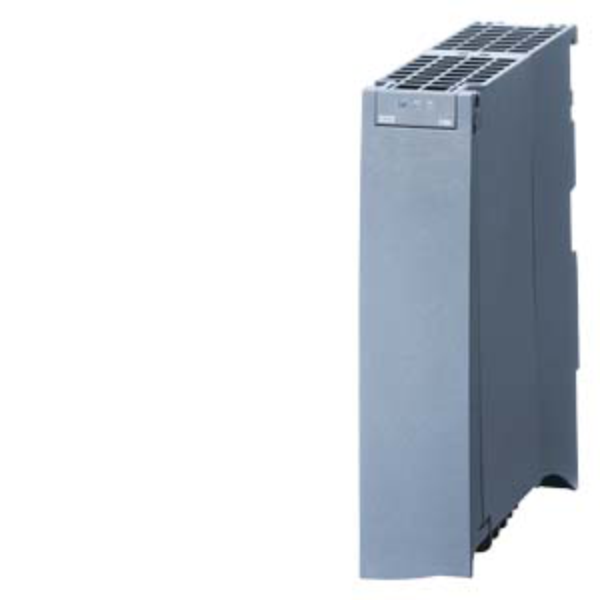

Siemens S7-1500 SIPLUS SM 522 Digital output modules SIPLUS S7-1500 DO 8X230VAC/5A ST
SKU: 6AG1522-5HF00-2AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This module provides 8 relay-based digital outputs, each capable of switching up to 5 A at 230 V AC, making it ideal for controlling motors, lamps, solenoids, and high-power actuators.
With IP-rated isolation, conformal coating, and wide voltage compatibility, it’s engineered for marine, mining, and process automation applications where reliability and environmental resilience are essential.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Channels: 8 (relay type).
Rated Output Voltage: 230 V AC (24–230 V AC / 24–120 V DC).
Output Current per Channel: 5 A (max); 8 A thermal continuous current.
Switching Capacity: Up to 1500 W lamp load; UL-rated contacts.
Relay Coil Voltage: 24 V DC.
Coil Current (all relays): ~80 mA.
Switching Frequency: 2 Hz (resistive); 0.5 Hz (inductive).
Protection: No internal short-circuit protection.
Isolation Voltage: 3,100 V DC (channel-to-channel & bus).
Power Loss: ~5 W.
Backplane Bus Consumption: ~0.8 W.
Dimensions (W×H×D): 35 × 147 × 129 mm.
Weight: ~350 g.
Environmental & Compliance:
Operating Temp: –25 °C to +60 °C.
Humidity: 100% RH with condensation/frost.
Conformal Coating: Class 2 (EN 61086), IPC-CC-830A compliant.
Protection Class: IP20.
Approvals: CE, UL, RCM, ATEX, IECEx, DNV.
Marine Use: Certified for salt spray, dust, and vibration.
Global Warming Potential: 43.8 kg CO₂ eq (lifecycle).
