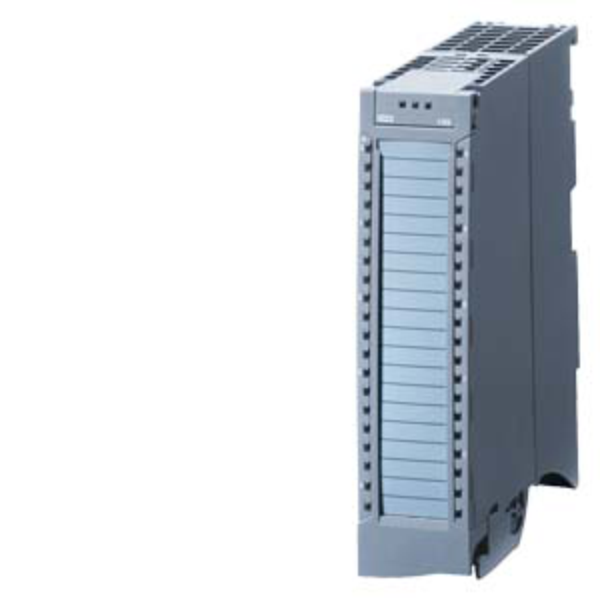

Siemens S7-1500 SIPLUS SM 531 Analog input modules SIPLUS S7-1500 AI 8XU/I/RTD/TC ST
SKU: 6AG1531-7KF00-7AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This module provides 8 analog input channels, configurable for voltage, current, RTD, or thermocouple signals.
With 16-bit resolution, diagnostics, and hardware interrupts, it’s ideal for temperature monitoring, process control, and sensor integration in environments exposed to condensation, salt spray, and corrosive gases.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Input Channels: 8 (4 RTD-capable).
Signal Types Supported: Voltage, Current, RTD, Thermocouple.
Resolution: 16-bit.
Accuracy: ±0.3% (typical); ±0.1% at 25 °C.
Voltage Ranges: ±10 V, ±1 V, ±250 mV, ±500 mV, ±80 mV.
Current Ranges: 0–20 mA, ±20 mA, 4–20 mA.
RTD Types: Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000.
TC Types: B, E, J, K, N, R, S, T.
Temperature Compensation: Internal, external RTD, or fixed value.
Conversion Time: 9–107 ms depending on mode.
Cable Length: 800 m (U/I), 200 m (RTD), 50 m (TC).
Encoder Supply: 24 VDC, short-circuit protected.
Max Encoder Output: 20 mA (47 mA peak <10 s).
Power Loss: ~2.7 W.
Dimensions (W×H×D): 35 × 147 × 129 mm.
Weight: ~310 g.
Environmental & Compliance:
Operating Temp: –40 °C to +70 °C.
Humidity: 100% RH with condensation/frost.
Altitude: Up to 5000 m.
Conformal Coating: Class 2 (EN 61086), IPC-CC-830A compliant.
Protection Class: IP20.
Approvals: CE, UL, ATEX, IECEx, DNV, FM, CCC, RCM.
AMS 2750 & CQI-9 Compliance: Yes.
Global Warming Potential: 38.6 kg CO₂ eq (lifecycle).
