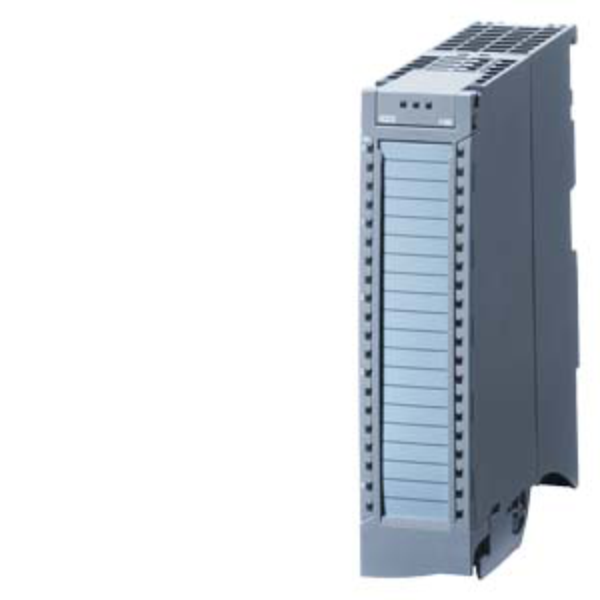

Siemens S7-1500 SIPLUS SM 532 Analog output modules SIPLUS S7-1500 AO 8XU/I HS
SKU: 6AG1532-5HF00-7AB0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This module provides 4 analog output channels, configurable for voltage or current signals.
With 16-bit resolution, diagnostics, and substitute value support, it’s ideal for actuator control, process feedback, and signal interfacing in environments exposed to condensation, salt spray, and corrosive gases.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Channels: 4 (grouped in sets of 4).
Signal Types Supported: Voltage, Current.
Resolution: 16-bit.
Accuracy: ±0.3% (typical); ±0.2% at 25 °C.
Output Voltage Ranges: 0–10 V, 1–5 V, ±10 V.
Output Current Ranges: 0–20 mA, ±20 mA, 4–20 mA.
Short-Circuit Protection: Yes (voltage outputs only).
Wire-Break Detection: Yes (current outputs only).
Conversion Time: 0.5 ms per channel.
Settling Time: 1.5–2.5 ms depending on load type.
Load Impedance: ≥1 kΩ (voltage); ≤750 Ω (current).
Cable Length: 800 m (current); 200 m (voltage).
Power Loss: ~4 W.
Backplane Bus Consumption: ~0.6 W.
Dimensions (W×H×D): 35 × 147 × 129 mm.
Weight: ~310 g.
Environmental & Compliance:
Operating Temp: –40 °C to +70 °C.
Humidity: 100% RH with condensation/frost.
Altitude: Up to 5000 m.
Conformal Coating: Class 2 (EN 61086), IPC-CC-830A compliant.
Protection Class: IP20.
Safety Ratings:
SIL 2 (IEC 62061).
PL d, Cat. 3 (ISO 13849-1).
Approvals: CE, UL, ATEX, IECEx, DNV, FM, CCC, RCM.
Global Warming Potential: 37.6 kg CO₂ eq (lifecycle).
