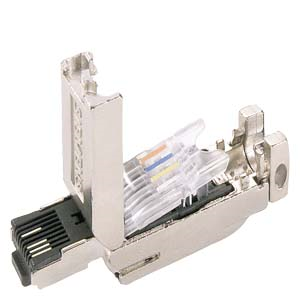

SIPLUS NET RJ45 plug 180 2x2 with rugged metal enclosure and FC connection technology
SKU: 6AG1901-1BB10-7AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Product Type Designation RJ45 plug-in connector.
SIPLUS NET RJ45 plug 180 2x2 based on 6GK1901-1BB10-2AA0 withconformal coating, -40…+70 °C. RJ45 plug-in connector (10/100 Mbps) with durable metal shell and FC connection technology for IE FC cable. 2 × 2 180° cable outlet. 1 pack equals 1 unit.
Buy currently uses Select Automation shop pricing and checkout.
Transfer rate:
transfer rate / for Industrial Ethernet: 10 Mbit/s, 100 Mbit/s.
Interfaces:
number of electrical connections.
for Industrial Ethernet FC TP cables: 4.
type of electrical connection.
for Industrial Ethernet FC TP cables: integrated cut-and-clamp contacts for 4-wire TP FC installation cable.
Ambient conditions:
ambient temperature.
in horizontal mounting position / during operation: 70 ... -40 °C.
during storage and transport: 70 ... -40 °C.
relative humidity.
with condensation / according to IEC 60068-2-38 / maximum: 100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation.
type of coating.
for electronic devices in railway applications according to EN 50155: Yes; protective coating of the Class PC2 according to EN 50155:2018.
Standards, specifications, approvals:
standard for structured cabling: Cat5.
reference code.
according to IEC 81346-2: X.
