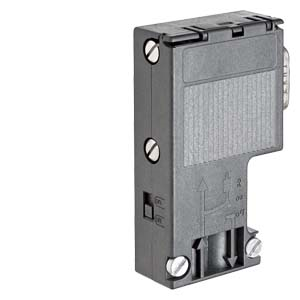

SIEMENS SIMATIC S7-300 PROFIBUS DP RS 485 bus connector - without PG - 90 degrees based on 6ES7972-0BA12-0XA0
SKU: 6AG1972-0BA12-2XA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
With a conformal coating and a temperature range of -25 to +70 degrees Celsius, the SIPLUS DP PROFIBUS plug with R has a 90-degree cable outlet, terminating resistor with isolating function, and no PG socket.
It is compatible with PROFIBUS connections up to 12 Mbps.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: For connecting PROFIBUS stations to the PROFIBUS bus cable.
Transfer rate / with PROFIBUS DP: 9.6 kbit/s - 12 Mbit/s.
Width: 15.8 mm.
Height: 64 mm.
Depth: 35.6 mm.
Interfaces:
Number of electrical connections (for PROFIBUS cables): 2.
Number of electrical connections (for network components or terminal equipment): 1.
Type of electrical connection (for PROFIBUS cables): Screw.
Type of electrical connection (for network components or terminal equipment): 9-pin sub-D connector.
Mechanical data:
Design of terminating resistor: Resistor combination integrated and connectable via slide switch.
Material / of the enclosure: plastic.
Locking mechanism design: Screwed joint.
Ambient conditions:
Ambient temperature (during operation): -40 ... +70 °C
Ambient temperature (during storage): -40 ... +70 °C
Ambient temperature (during transport): -40 ... +70 °C
Ambient temperature (in horizontal mounting position / during operation): 70 ... -40 °C
Ambient temperature (during storage and transport): 70 ... -40 °C
Installation altitude / at height above sea level / maximum: 5000 m.
Relative humidity (with condensation / maximum): 100 %; RH incl. condensation/frost permitted (no commissioning in bedewed state).
Relative humidity (with condensation / according to IEC 60068-2-38 / maximum): 100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation.
