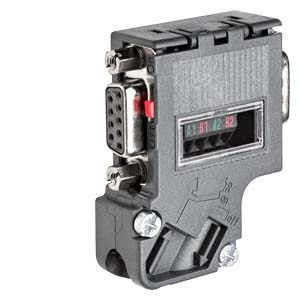

SIEMENS SIMATIC S7-300 PROFIBUS DP RS 485 bus connector - with PG - inclined based on 6ES7972-0BB42-0XA0
SKU: 6AG1972-0BB42-7XA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Connectivity plugs for PROFIBUS up to 12 Mbps, SIPLUS DP PROFIBUS plug with R-with-PG incline based on 6ES7972 0BB42-0XA0, conformal coating, -40…+70 °C, inclined cable outlet, terminating resistor with isolating function, and PG socket.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Suitability for use: For connecting PROFIBUS stations to the PROFIBUS bus cable.
Transfer rate / with PROFIBUS DP: 9.6 kbit/s - 12 Mbit/s.
Width: 15.8 mm.
Height: 54 mm.
Depth: 39.5 mm.
Interfaces:
Number of electrical connections (for PROFIBUS cables): 2.
Number of electrical connections (for network components or terminal equipment): 1.
Type of electrical connection (for PROFIBUS cables): Screw.
Type of electrical connection (for network components or terminal equipment): 9-pin sub-D connector.
Mechanical data:
Design of terminating resistor: Resistor combination integrated and connectable via slide switch.
Material / of the enclosure: plastic.
Locking mechanism design: Screwed joint.
Ambient conditions:
Ambient temperature (during operation): -40 ... +70 °C
Ambient temperature (during storage): -40 ... +70 °C
Ambient temperature (during transport): -40 ... +70 °C
Ambient temperature (in horizontal mounting position / during operation): 70 ... -40 °C
Ambient temperature (during storage and transport): 70 ... -40 °C
Installation altitude / at height above sea level / maximum: 5000 m.
Relative humidity (with condensation / maximum): 100 %; RH incl. condensation/frost permitted (no commissioning in bedewed state).
Relative humidity (with condensation / according to IEC 60068-2-38 / maximum): 100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation.
