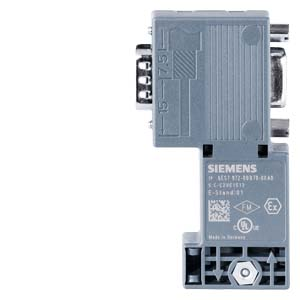

SIEMENS SIMATIC S7-300 PROFIBUS DP RS 485 bus connector - with PG - 90 degrees based on 6ES7972-0BB70-0XA0
SKU: 6AG1972-0BB70-7XA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Siplus DP PROFIBUS plug with PG-90 degrees based on 6ES7972-0BB70-0XA0, conformal coated, -40…+70 °C, 90° cable outlet, insulation displacement mechanism Fast Connect, and PG socket for PROFIBUS connections up to 12 Mbps.
Buy currently uses Select Automation shop pricing and checkout.
Transfer rate:
transfer rate / with PROFIBUS DP: 9.6 kbit/s - 12 Mbit/s.
Mechanical data:
Locking mechanism design: Screwed joint.
Ambient conditions:
Ambient temperature (during operation): -40 ... +70 °C.
Ambient temperature (during storage): -40 °C.
Ambient temperature (during transport): -40 °C.
Ambient temperature (in horizontal mounting position / during operation): 70 ... -40 °C.
Ambient temperature (during storage and transport): 70 ... -40 °C.
Installation altitude / at height above sea level / maximum: 5000 m.
Relative humidity (with condensation / maximum): 100 %; RH incl. condensation/frost permitted (no commissioning in bedewed state).
Relative humidity (with condensation / according to IEC 60068-2-38 / Maximum): 100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation.
