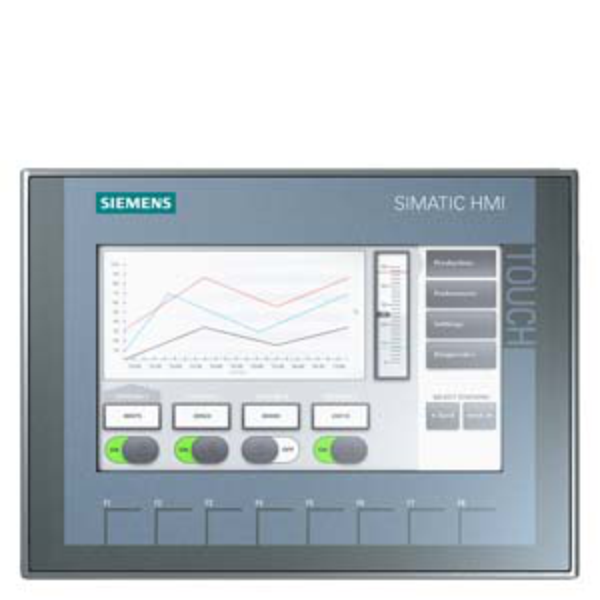

Siemens S7-1200 SIMATIC HMI KTP700 Basic
SKU: 6AV2123-2GA03-0AX0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The TP700 Comfort is a 7-inch widescreen touch panel from Siemens’ SIMATIC HMI Comfort series, designed for demanding applications in machine-level HMI.
It features a TFT display with 800 × 480 resolution, supports 16 million colours, and offers multi-language, vector-based graphics for intuitive user interaction.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display Size: 7" TFT widescreen.
Resolution: 800 × 480 pixels.
Colour Depth: 16 million colours.
Touch Technology: Analog resistive.
Processor: ARM-based, high-performance.
RAM / Flash: 128 MB / 512 MB.
Interfaces: 2 × Ethernet (RJ45), 1 × USB host, 1 × USB device.
Expansion: SD card slot (up to 32 GB).
Power Supply: 24 V DC (19.2–28.8 V range).
Power Consumption: ~12 W typical.
Mounting: Panel flush mount.
Protection Class: IP65 (front), IP20 (rear).
Operating Temperature: 0 °C to +50 °C.
Certifications: CE, UL, cULus, RCM, KC.
Software Compatibility: WinCC Comfort or higher, TIA Portal.
