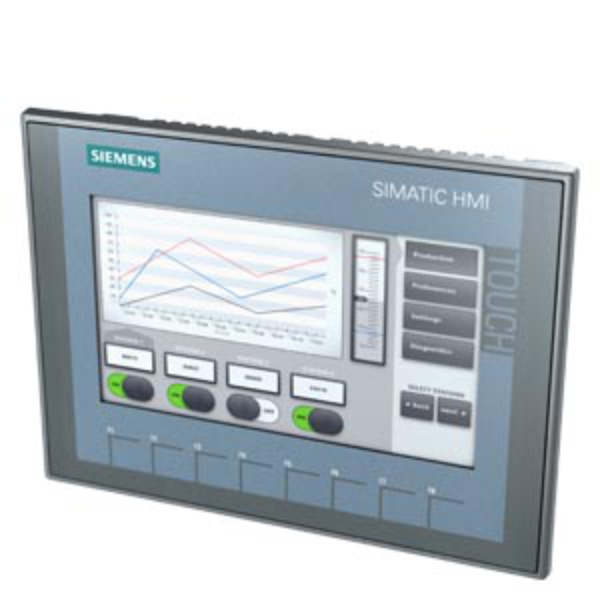

Siemens S7-1200 Operator control and monitoring SIMATIC HMI KTP700 Basic Color 7"
SKU: 6AV2123-2GB03-0AX0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This HMI features a 7-inch TFT touch display with 800 × 480 resolution, combining touch functionality with 8 programmable function keys.
It’s tailored for systems requiring PROFIBUS DP communication, making it ideal for legacy or hybrid networks.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display Size: 7" TFT colour.
Resolution: 800 × 480 pixels.
Touch Type: Resistive.
Function Keys: 8 programmable keys.
Backlight Lifetime: ~50,000 hours.
Processor: ARM-based.
RAM: 128 MB.
Flash Memory: 128 MB.
Interface: 1 × PROFIBUS DP (via RS485), 1 × USB host.
Power Supply: 24 V DC (19.2–28.8 V range).
Power Consumption: ~6 W
Dimensions (W×H×D): 214 × 158 × 45 mm.
Mounting Cutout: 198 × 142 mm.
Weight: ~0.8 kg.
Environmental Ratings:
Operating Temp: 0 to +50 °C.
Storage Temp: –20 to +60 °C.
Humidity: 5–85% (non-condensing).
Protection Class: IP65 (front), IP20 (rear).
Vibration/Shock: IEC 60068-2 compliant.
Certifications & Approvals:
CE, UL, CSA, RCM, KC.
Marine: ABS, BV, DNV, LRS, RINA, RMRS, CCS.
Hazardous Location: ATEX, IECEx.
EMC: EN 61000-6-2 / EN 61000-6-4.
Environmental Product Declaration (EPD).
Global Warming Potential: ~91.6 kg CO₂ eq.
