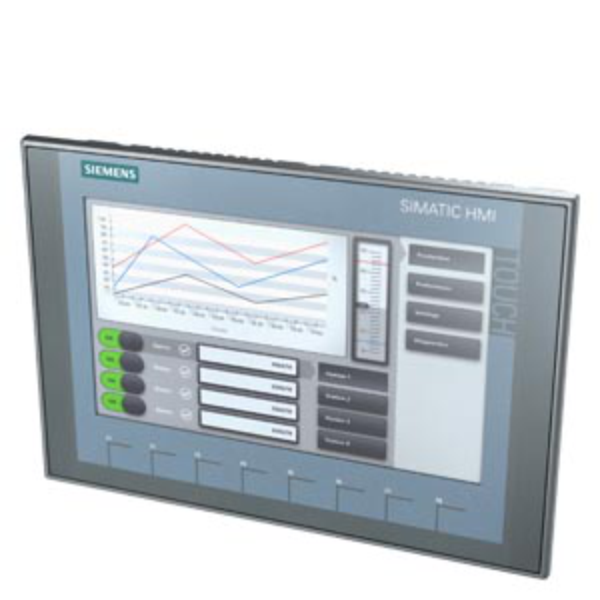

Siemens S7-1200 Operator control and monitoring SIMATIC HMI KTP900 Basic Color 9"
SKU: 6AV2123-2JB03-0AX0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This panel features a 9-inch TFT widescreen display with 800 × 480 resolution, combining touch functionality with 8 programmable function keys.
It is optimized for PROFINET-based systems, offering seamless integration with SIMATIC S7-1200 and S7-1500 controllers.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Display Size: 9" TFT colour.
Resolution: 800 × 480 pixels.
Touch Type: Analog-resistive.
Function Keys: 8 programmable keys.
Backlight Lifetime: ~20,000 hours.
Processor: ARM-based.
RAM / Flash: 128 MB each.
User Memory: 10 MB.
Interface: 1 × Ethernet (RJ45), 1 × USB host.
Protocols Supported: PROFINET, Modbus TCP/IP, EtherNet/IP.
Power Supply: 24 V DC (19.2–28.8 V range).
Power Consumption: ~5.5 W.
Dimensions (W×H×D): 267 × 182 × 39.4 mm.
Mounting Cutout: 251 × 166 mm.
Weight: ~1.13 kg (without packaging).
Environmental Ratings:
Operating Temp: 0 to +50 °C.
Storage Temp: –20 to +60 °C.
Humidity: Up to 90% (non-condensing).
Protection Class: IP65 (front), IP20 (rear).
Vibration/Shock: IEC 60068-2 compliant.
Certifications & Approvals:
CE, UL, CSA, RCM, KC.
Marine: ABS, BV, DNV, LRS, RINA, NK.
EMC: EN 61000-6-2 / EN 61000-6-4.
Environmental Product Declaration (EPD).
Global Warming Potential: ~85 kg CO₂ eq.
