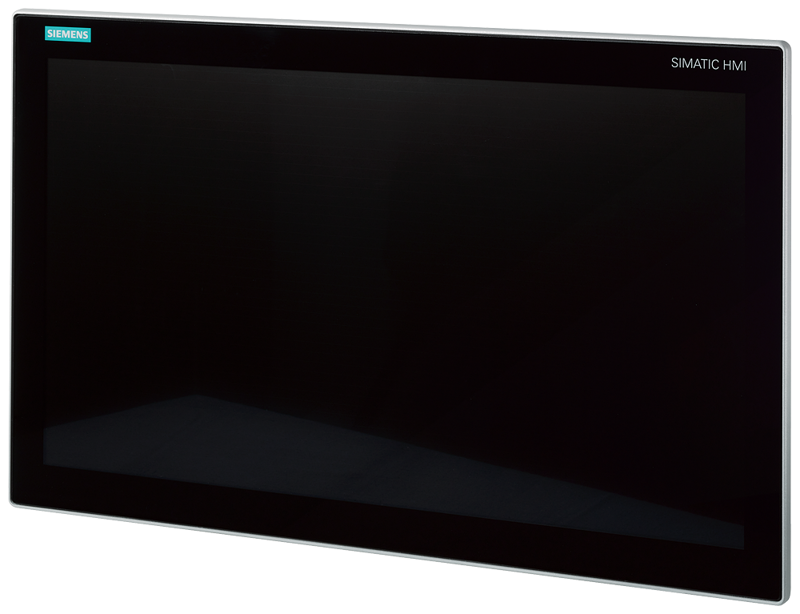

SIMATIC HMI ITC2200 V3 neutral design Built-in unit

Specifications: Display: Design of display: TFT widescreen display, LED backlighting. Screen diagonal: 21.5 in; 22". Display width: 495.6 mm. Display height: 292.2 mm. Number of colours: 16 777 216. Resolution (pixels): Image resolution: 1 920 x 1 080. Horizontal image resolution: 1 920 pixels. Vertical image resolution: 1 080 pixels. Non-reflective and tempered mineral glass screen. Detachable from computer unit for 100 m. Backlighting: Type of backlighting: LED, dimmable. MTBF backlighting (at 25 °C): 30 000 h; At 25°C. Backlight dimmable. Multi-touch screen. Installation type/mounting: Design: Built-in unit. Front mounting. Maximum permitted forward tilt angle from vertical: 35°. Maximum permitted backward tilt angle from vertical: 35°. Supply voltage: Type of supply voltage: DC. Rated value (DC): 24 V. Permissible range, lower limit (DC): 19.2 V. Permissible range, upper limit (DC): 28.8 V. Input current: Current consumption (rated value): 1.7 A. Starting current inrush I²t: 0.5 A²·s. Active power input, typical: 41 W. Power loss, typical: 41 W. Interfaces: Number of industrial Ethernet interfaces: 2; 2 ports (switch). Number of USB interfaces: 4; on rear. USB on the rear: 2x onboard. Connection for keyboard/mouse: USB. Industrial Ethernet, Transmission rate, max: 1 000 Mbit/s. Degree and class of protection, IP (at the front): IP65. Ambient temperature during operation: Minimum: 0 °C. Maximum: 45 °C. Ambient temperature during storage/transportation: Minimum: -20 °C. Maximum: 60 °C. Relative humidity, Operation, max: 90 %; no condensation. Width of the housing front: 529 mm. Height of housing front: 331 mm. Mounting cutout, width: 513 mm. Mounting cutout, height: 315 mm. Overall depth: 73 mm.
