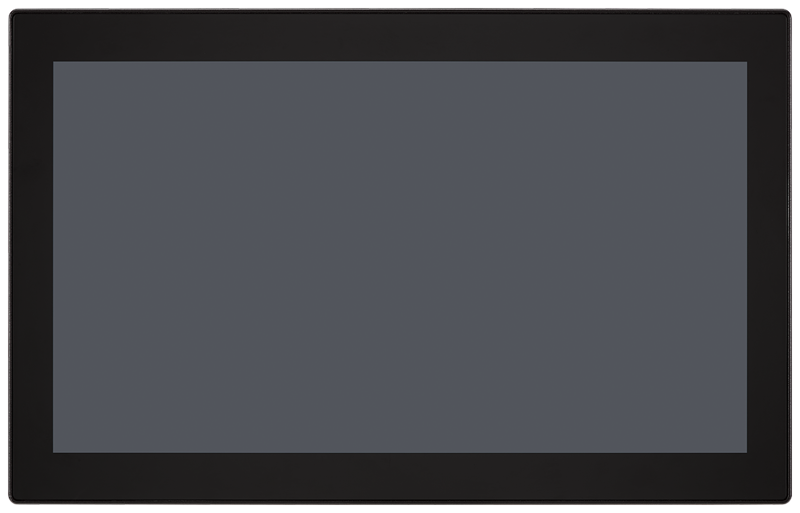

SIMATIC IPC IPC477E 19" multi-touch, Core i3-6102E, 8 GB RAM, 240 GB SSD
SKU: 6AV7241-3XB07-0FA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC IPC 477E 19" Multitouch (1366 x 768); neutral front; 4 USB (back); Ethernet (10/100/1000); Core i3-6102E; 3x Gigabit Ethernet (IE/PN); 8 GB; no RS232/RS485; no PCIe; Windows 10 IoT Enterprise 2016 LTSB (64 bit) for Celeron I3 and I5; no replaceable mass storage; 240 GB Solid-State Drive SATA; no SIMATIC software; 24 V DC industrial power supply.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage: 24 V DC.
Processor type: Core i3-6102E.
Drives: Hard disk, 500 GB HDD.
Memory:
Type of memory: DDR3L.
Main memory: 4 GB (pre-installed).
Capacity of main memory, max: 8 Gbyte.
Interfaces:
Number of industrial Ethernet interfaces: 3.
Number of PROFINET interfaces: 3.
Graphics interface: 1x DisplayPort, 1x VGA.
Degree and class of protection: IP (at the front), IP65.
Ambient temperature during operation:
Minimum: 0 °C.
Maximum: 45 °C.
Width: 464 mm.
Height: 294 mm.
Depth: 85 mm.
