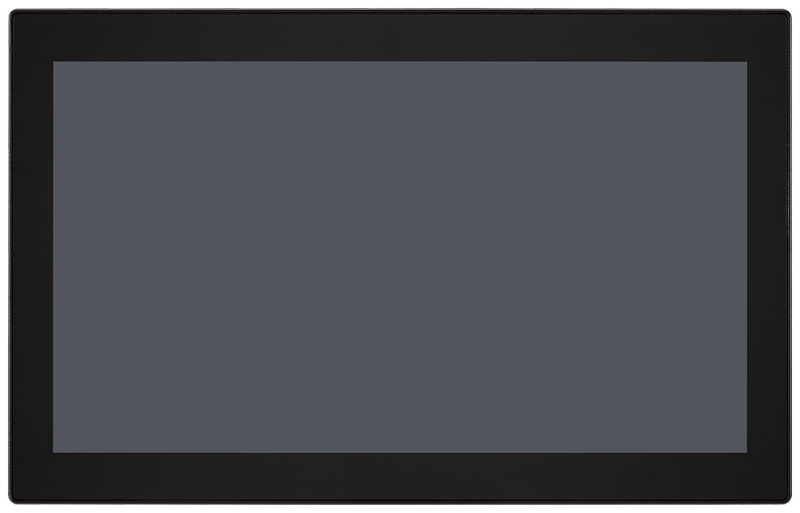

      SIMATIC IPC IPC477E 22" multi-touch, Core i3-6102E, 4 GB RAM, 240 GB SSD

      SKU: 6AV7241-3YA07-0FA0

      Out of stock

      Availability: Out of Stock

      Short Description
      Description: SIMATIC IPC 477E 22" Multitouch (1920 x 1080); neutral front; 2 Gigabit Ethernet (IE/PN); 4 USB (back); Ethernet (10/100/1000); Core i3-6102E; The configuration of the memory is 4 GB without RS232/RS485, without PCIe, Windows 10 IoT Enterprise 2016 LTSB (64bit), Celeron, I3/I5, and without replaceable mass storage. Internal mass storage: 24 V DC industrial power supply; 240 GB Solid-State Drive SATA; without SIMATIC software.
      6AV7241-3YA07-0FA0
      Alternative image 1
      Specifications: Supply voltage: 24 V DC. Processor type: Core i3-6102E. Drives: Hard disk, 500 GB HDD. Capacity of main memory, max: 4 Gbyte. Interfaces: Number of industrial Ethernet interfaces: 3. Number of PROFINET interfaces: 3. Graphics interface: 1x DisplayPort, 1x VGA. Degree and class of protection: IP (at the front), IP65. Ambient temperature during operation: Minimum: 0 °C. Maximum: 45 °C. Width: 529 mm. Height: 331 mm. Depth: 85 mm.
