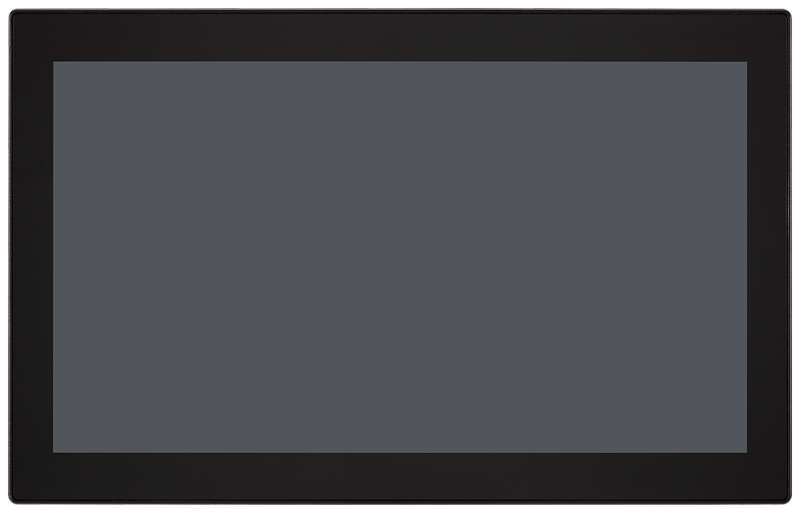

SIMATIC IPC IPC477E 24" multi-touch, Core i5-6442EQ, 8 GB RAM, 240 GB SSD
SKU: 6AV7241-5SB07-0FA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC IPC 477E; 24" Multitouch (1920 x 1080); neutral front (with WES7-E only single-touch operation); four USB ports (rear), Ethernet (10/100/1000); 3x Gigabit Ethernet (IE/PN); Core i5-6442EQ.
Memory configuration: 8 GB; no RS232/RS485; no PCIe; Windows 10 IoT Enterprise 2016 LTSB (64Bit) for Celeron, I3, and I5 processors; changeable mass storage.
Internal mass storage: 240 GB SATA solid-state drive without SIMATIC software and a 24 V DC industrial power supply.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of supply voltage: 24 V DC.
Processor type: Core i5-6442EQ (4C/4T, 1.9 (2.7) GHz, 6 MB cache).
Hard disk: 500 GB HDD.
Type of memory: DDR3L.
Main memory: 4 GB (pre-installed).
Capacity of main memory, max: 8 G byte.
Number of PCI slots: 0.
Number of industrial Ethernet interfaces: 3.
Number of PROFINET interfaces: 3.
Graphics interface: 1x DisplayPort, 1x VGA.
Degree of protection IP (at the front): IP65.
Ambient temperature during operation:
Minimum: 0 °C.
Maximum: 45 °C.
Pre-installed operating system: Windows 10 IoT Enterprise 2016 LTSB, 64bit, MUI.
Width: 585 mm.
Height: 363 mm.
Depth: 85 mm.
