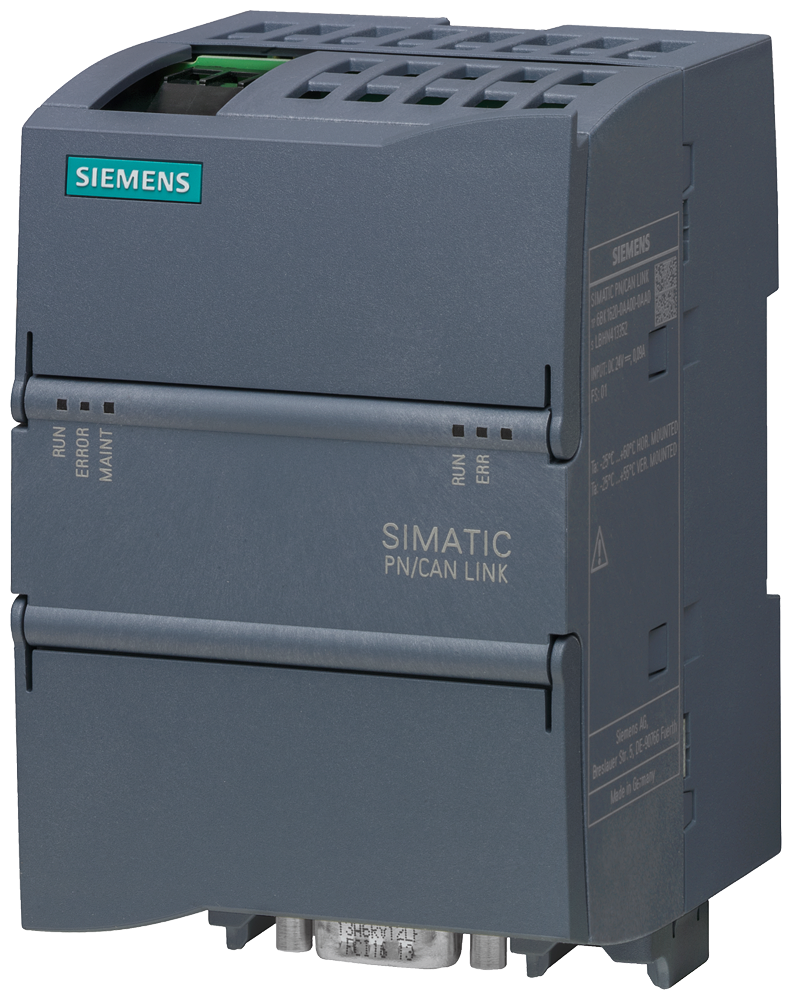

SIMATIC NET PN/CAN Link

Specifications: Mounting: DIN rail, wall mounting, portrait mounting. Mounting position: any. Recommended mounting position: Horizontal. Rail mounting. Control cabinet installation. Supply voltage: Type of supply voltage: DC. Rated value (DC): 24 V. Permissible range, lower limit (DC): 20.4 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection. Overvoltage protection. Short-circuit protection. Input current: Current consumption (rated value): 0.09 A. Current consumption, max.: 0.11 A. Typical power loss: 2.2 W. Interfaces/bus type: 2x Ethernet (RJ45), 1x Sub-D (9-pin). Supports protocol for PROFINET IO: Transmission rate, max: 100 Mbit/s. Number of RJ45 ports: 2. Number of FC (Fast Connect) connections: 2. Interface type: CAN according to CIA 303-1. Isolated: Yes; 500 V AC or 707 V DC. Number of ports: 1. Design of the connection: 9-pin sub-D socket. Interface type: PROFINET. Isolated: Yes; 1 500 V AC or 2 250 V DC. RJ 45 (Ethernet). Number of ports: 2. Integrated switch. IP degree of protection: IP20. Ambient temperature during operation: Horizontal installation, min: -25 °C. Horizontal installation, max: 60 °C. Vertical installation, min: -25 °C. Vertical installation, max: 55 °C. Ceiling installation, min: -25 °C. Ceiling installation, max: 45 °C. Floor installation, min: -25 °C. Floor installation, max: 45 °C. Ambient temperature during storage/transportation: Minimum: -40 °C. Maximum: 85 °C. Relative humidity Operational, max: 95 %. Width: 70 mm. Height: 112 mm. Depth: 75 mm.
