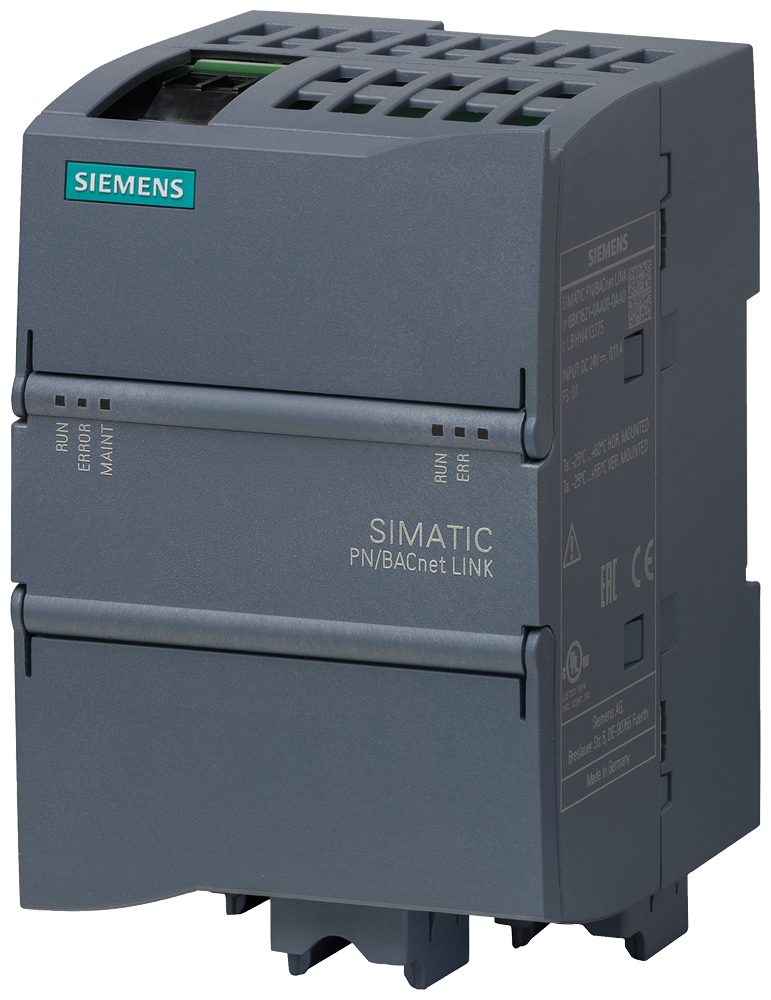

SIMATIC NET PN/BACnet Link

Specifications: Product function: I&M data. Mounting: DIN rail, wall mounting, portrait mounting. Mounting position: any. Recommended mounting position: Horizontal. Rail mounting. Control cabinet installation. Supply voltage: Type of supply voltage: DC. Rated value (DC): 24 V. Permissible range, lower limit (DC): 20.4 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection. Overvoltage protection. Short-circuit protection. Input current: Current consumption (rated value): 0.11 A. Current consumption, max: 0.13 A. Typical power loss: 2.7 W. Interfaces: Supports protocol for PROFINET IO: Transmission rate, maximum: 100 Mbit/s. Number of RJ45 ports: 2. Number of FC (Fast Connect) connections: 2. PROFINET functions: Assignment of the IP address, supported. Assignment of the device name, supported. Interface type: BACnet/IP. Isolated: Yes; 1 500 V AC or 2 250 V DC. Interface types: RJ 45 (Ethernet). Number of ports: 1. Design of the connection: RJ45. Interface type: PROFINET. Isolated: Yes; 1 500 V AC or 2 250 V DC. Interface types: RJ 45 (Ethernet). Number of ports: 2. Integrated switch. IP degree of protection: IP20. Standards, approvals, certificates: CE mark. UL approval. CULus. RCM (formerly C-TICK). KC approval. PNO certificate. BTL certificate. RoHS conformity. Ambient temperature during operation: Horizontal installation, minimum: -25 °C. Horizontal installation, maximum: 60 °C. Vertical installation, minimum: -25 °C. Vertical installation, maximum: 55 °C. Ceiling installation, minimum: -25 °C. Ceiling installation, maximum: 45 °C. Floor installation, minimum: -25 °C. Floor installation, maximum: 45 °C. Ambient temperature during storage/transportation: Minimum: -40 °C. Maximum: 85 °C. Relative humidity: Operation, maximum: 95 %. Design of electrical connection: Screw connection. Width: 70 mm. Height: 112 mm. Depth: 75 mm.
