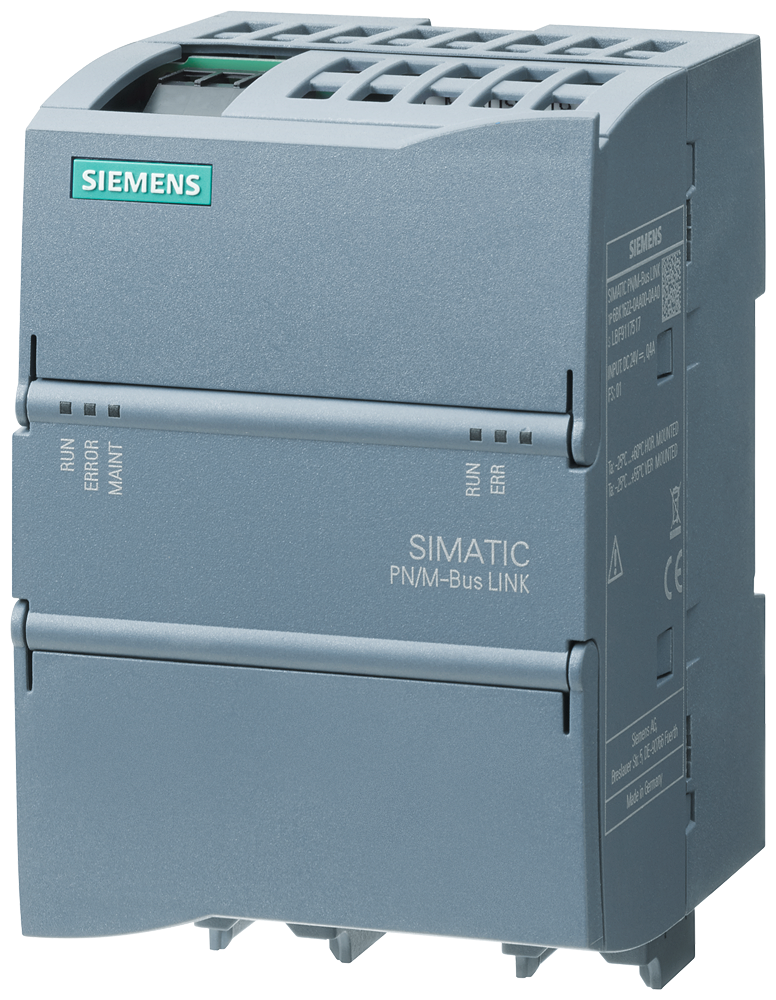

SIMATIC NET PN/M-Bus LINK

Specifications: Mounting: DIN rail, wall mounting, portrait mounting. Mounting position: any. Recommended mounting position: Horizontal. Rail mounting. Control cabinet installation. Supply voltage: Type of supply voltage: DC. Rated value (DC): 24 V. Permissible range, lower limit (DC): 20.4 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection. Overvoltage protection. Short-circuit protection. Input current: Current consumption (rated value): 0.11 A; At 24 V and 5 loads. Current consumption, max.: 0.4 A; At 20.4 V, 40 loads + 100 mA short-circuit current. Typical power loss: 2.4 W. Supports protocol for PROFINET IO: Transmission rate, max: 100 Mbit/s. Number of RJ45 ports: 2. Number of FC (Fast Connect) connections: 2. Interface type: M-Bus master. Isolated: no. Number of ports: 1. Design of the connection: 3-wire screw-type terminal. M-Bus: Bus voltage, typical: 36 V. Transmission rate, min: 300 bit/s. Transmission rate, max: 9 600 bit/s. Max. number of devices: 40. Short-circuit detection. Short-circuit proof. Connectable conductor cross-section: 1.5 mm². Cable length, max: 300 m. Interface type: PROFINET. Isolated: Yes; 1 500 V AC or 2 250 V DC. RJ 45 (Ethernet). Number of ports: 2. Integrated switch. IP degree of protection: IP20. Ambient temperature during operation: Horizontal installation, min: -25 °C. Horizontal installation, max: 60 °C. Vertical installation, min: -25 °C. Vertical installation, max: 55 °C. Ceiling installation, min: -25 °C. Ceiling installation, max: 45 °C. Floor installation, min: -25 °C. Floor installation, max: 45 °C. Ambient temperature during storage/transportation: Minimum: -40 °C. Maximum: 70 °C. Relative humidity Operational, max: 95 %. Width: 70 mm. Height: 112 mm. Depth: 75 mm.
