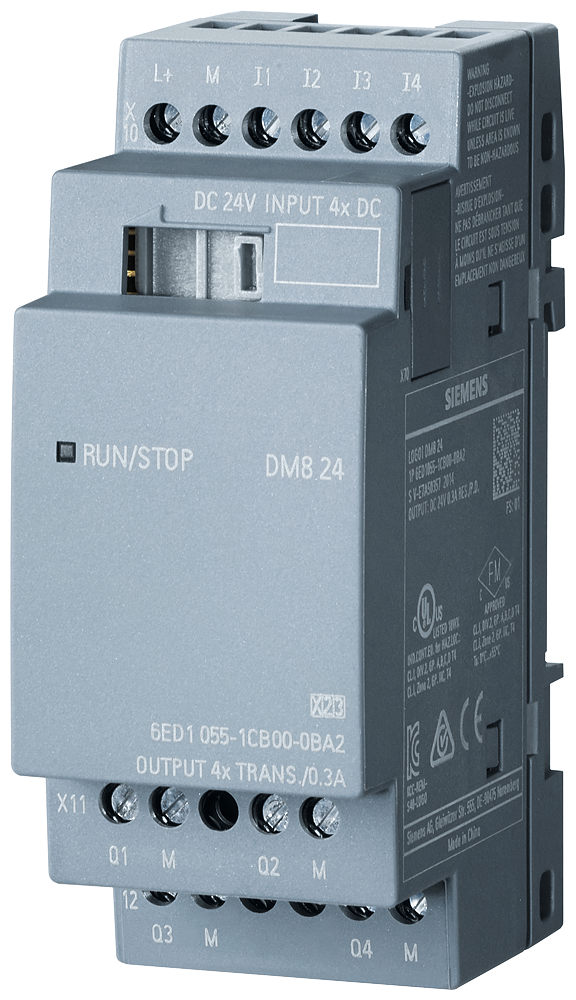

LOGO! DM8 24 For LOGO! 8
SKU: 6ED1055-1CB00-0BA2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
LOGO! DM8 24 extension module with 4 DI/4 DO for LOGO and PS/I/O: 24V/24V/trans! 8.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Mounting: on 35 mm DIN rail, 4 spacing units wide.
Supply voltage:
Rated value (DC): 24 V DC.
Permissible range, lower limit (DC): 20.4 V.
Number of digital inputs: 4.
Input voltage:
Type of input voltage: DC.
For signal "0": 5 V DC.
For signal "1": 12 V DC.
Input current:
For signal "0", max. (permissible quiescent current): 0.88 Ma.
For signal "1", typical: 2.1 Ma.
Number of digital outputs: 4.
Short-circuit protection.
Output current: for signal "1" rated value, 0.3 A.
Switching frequency:
With resistive load, max: 10 Hz.
With inductive load, max: 0.5 Hz.
IP degree of protection: IP20.
Width: 35.5 mm.
Height: 90 mm.
Depth: 58 mm.
