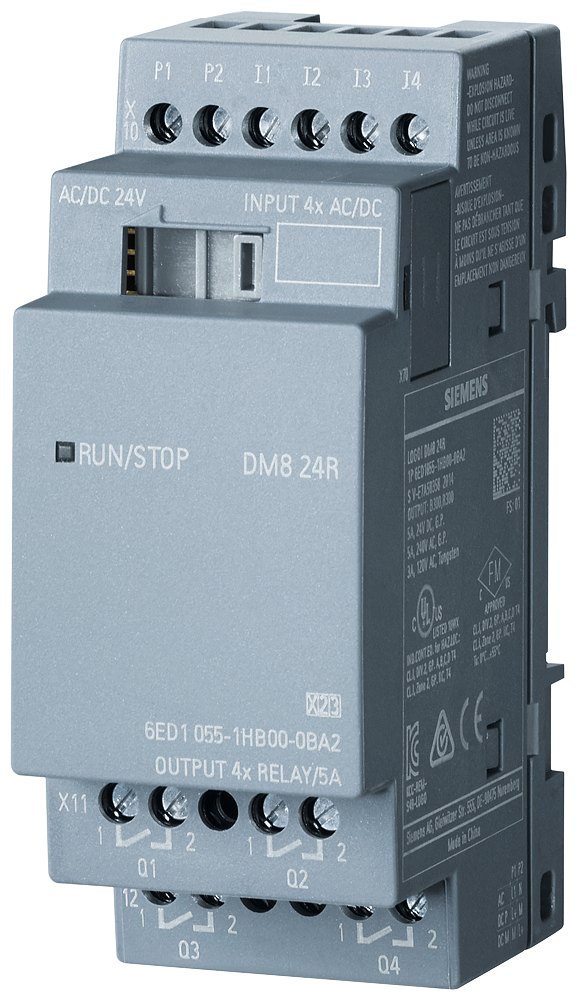

LOGO! DM8 24R For LOGO! 8
SKU: 6ED1055-1HB00-0BA2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
LOGO! DM8 24R expansion module, AC/DC/NPN input for LOGO! 8, PS/I/O: 24V/24V/relay, 2 MW 4 DI/4 DO.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Mounting: on 35 mm DIN rail, 4 spacing units wide.
Supply voltage:
Rated value (DC): 24 V DC.
Permissible range, lower limit (DC): 20.4 V.
Permissible range, upper limit (DC): 28.8 V.
Rated value (AC): 24 V AC.
Number of digital inputs: 4.
Input voltage:
Type of input voltage: AC/DC.
For signal "0": 5 V AC/DC.
For signal "1": 12 V AC/DC.
Input current:
For signal "0", max. (permissible quiescent current): 1.1 Ma.
For signal "1", typical: 2.63 Ma.
Number of digital outputs: 4; Relays.
Controlling a digital input.
Output current:
For signal "1" rated value: 5 A.
For signal "1" minimum load current: 100 Ma.
Switching frequency:
With resistive load, max: 2 Hz.
With inductive load, max: 0.5 Hz.
Mechanical, max: 10 Hz.
IP degree of protection: IP20.
Width: 35.5 mm.
Height: 90 mm.
Depth: 58 mm.
