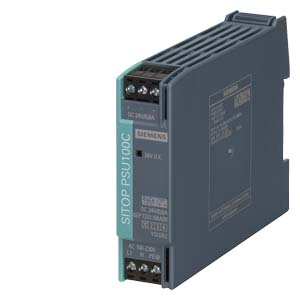

SIEMENS SIMATIC S7-300 SITOP compact 24 V/0.6 A

Input: Type of the power supply network: 1-phase AC or DC. Supply voltage at AC. Minimum rated value: 100 V. Maximum rated value: 230 V. Initial value: 85 V. Full-scale value: 264 V. Input voltage at DC: 110 ... 300 V. Wide range input: Yes. Overvoltage overload capability: 2.3 × Vin rated, 1.3 ms. Buffering time for rated value of the output current in the event of power failure minimum: 20 ms. Operating condition of the mains buffering: at Vin = 230 V. Line frequency: 50/60 Hz. Line frequency: 47 ... 63 Hz. Input current. At rated input voltage 100 V: 0.28 A. At rated input voltage 230 V: 0.18 A. Current limitation of inrush current at 25 °C maximum: 28 A. I2t value maximum: 0.7 A²·s. Fuse protection type: internal. Fuse protection type in the feeder: Recommended miniature circuit breaker: from 16 A characteristic B or from 10 A characteristic C. Output: Voltage curve at output: Controlled, isolated DC voltage. Output voltage at DC rated value: 24 V. Output voltage. At output 1 at DC rated value: 24 V. Output voltage adjustable: No; -. Relative overall tolerance of the voltage: 3 %. Relative control precision of the output voltage. On slow fluctuation of input voltage: 0.1 %. On slow fluctuation of ohm loading: 0.2 %. Residual ripple. Maximum: 200 mV. Typical: 40 mV. Voltage peak. Maximum: 300 mV. Typical: 20 mV. Display version for normal operation: Green LED for output voltage OK. Behaviour of the output voltage when switching on: Overshoot of Vout approx. 5 %. Response delay maximum: 1 s. Voltage increase time of the output voltage. Typical: 25 ms. Output current. Rated value: 0.6 A. Rated range: 0 ... 0.6 A. Supplied active power typical: 14 W. Short-term overload current. At short-circuit during operation typical: 1 A. Bridging of equipment: No. Efficiency: Efficiency in percent: 82 %. Power loss [W]. At rated output voltage for rated value of the output current typical: 2.6 W. During no-load operation maximum: 0.75 W. Closed-loop control: Relative control precision of the output voltage with rapid fluctuation of the input voltage by +/ 15% typical: 0.1 %. Relative control precision of the output voltage at load step of resistive load 10/90/10 % typical: 3 %. Setting time. Load step 10 to 90% typical: 3 ms. Load step 90 to 10% typical: 3 ms. Protection and monitoring: Design of the overvoltage protection: Yes, according to EN 60950-1. Property of the output short-circuit proof: Yes. Design of short-circuit protection: Electronic shutdown, automatic restart. Typical: 0.7 A. Safety: Galvanic isolation between input and output: Yes. Galvanic isolation: Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178. Operating resource protection class: Class I. Leakage current. Maximum: 3.5 mA. Typical: 0.4 mA. Protection class IP: IP20. EMC: Standard. For emitted interference: EN 55022 Class B. For mains harmonics limitation: not applicable. For interference immunity: EN 61000-6-2. Standards, specifications, approvals: Certificate of suitability. CE marking: Yes. UL approval: Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus Recognized (UL 60950, CSA C22.2 No. 60950), File E151273, NEC class 2 (acc. to UL 1310). CSA approval: Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURusRecognized (UL 60950, CSA C22.2 No. 60950), File E151273, NEC class 2 (acc. to UL 1310). EAC approval: Yes. NEC Class 2: Yes; according to UL1310, File E151273. Type of certification. CB-certificate: Yes. MTBF at 40 °C: 3 910 833 h. Standards, specifications, approvals hazardous environments: Certificate of suitability: IECEx: No. ATEX: No. ULhazloc approval: No. cCSAus, Class 1, Division 2: No. FM registration: No. Standards, specifications, approvals marine classification: Shipbuilding approval: Yes. Marine classification association. American Bureau of Shipping Europe Ltd. (ABS): Yes. French marine classification society (BV): No. Det Norske Veritas (DNV): Yes. Lloyds Register of Shipping (LRS): No. Standards, specifications, approvals Environmental Product Declaration: Environmental Product Declaration: Yes. Global Warming Potential [CO2 eq]. Total: 83.8 kg. During manufacturing: 2.4 kg. During operation: 81.3 kg. After end of life: 0.08 kg. Ambient conditions: Ambient temperature. During operation: -20 ... +70 °C; with natural convection. During transport: -40 ... +85 °C. During storage: -40 ... +85 °C. Environmental category according to IEC 60721: Climate class 3K3, 5 ... 95% no condensation. Connection method: Type of electrical connection: screw terminal. At input: L, N, PE: Removable screw terminal, each for 1 x 0.5 ... 2.5 mm². At output: +: 1 screw terminal for 0.5 ... 2.5 mm²; -: 2 screw terminals for 0.5 ... 2.5 mm². For auxiliary contacts: - Mechanical data: Width × height × depth of the enclosure: 22.5 × 80 × 100 mm. Installation width × mounting height: 22.5 mm × 180 mm. Required spacing. Top: 50 mm. Bottom: 50 mm. Left: 0 mm. Right: 0 mm. Fastening method: Snaps onto DIN rail EN 60715 35x7.5/15. Standard rail mounting: Yes. S7 rail mounting: No. Wall mounting: No. Housing can be lined up: Yes. Net weight: 0.12 kg. Accessories: Electrical accessories: Removable spring-type terminal 6EP1971-5BA00.
