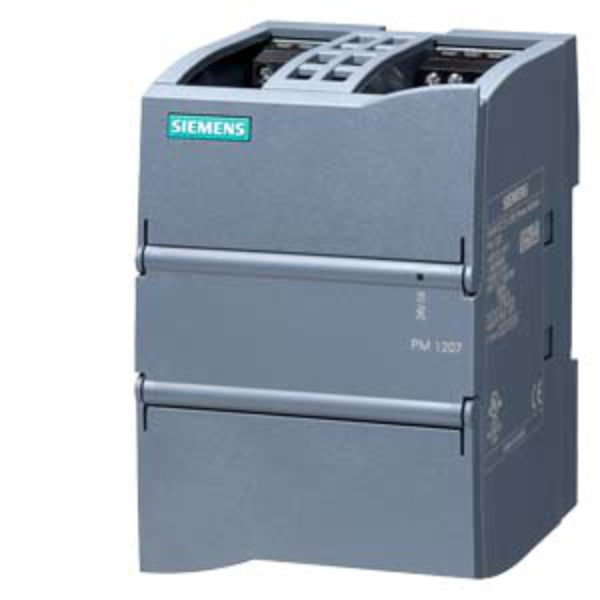

Siemens S7-1200 Power supply

Specifications: Input Characteristics: Input Voltage Range: 85–132 V AC or 176–264 V AC (automatic range selection). Frequency: 47–63 Hz. Inrush Current: Max 13 A (limited to 3 ms). Fuse Protection: Internal T 3.15 A / 250 V (non-accessible). Recommended MCB: 16 A (type B) or 10 A (type C). Output Characteristics: Rated Output Voltage: 24 V DC. Rated Output Current: 2.5 A. Voltage Tolerance: ±3%. Ripple (max): 150 mV. Voltage Peak (max): 240 mV. Short-Circuit Protection: Yes (constant current characteristic). Overvoltage Protection: <33 V. Soft Start: No overshoot on power-up. Efficiency: ~83%. Power Loss: ~12 W. MTBF @ 40 °C: ~1.49 million hours. Mechanical & Environmental: Dimensions(W×H×D): 70 × 100 × 75 mm. Mounting; DIN rail (EN 60715) or wall mount. Protection Rating: IP20. Operating Temp: 0 to +60 °C. Storage Temp: –40 to +85 °C. Humidity: 5–95% (non-condensing). Weight: ~0.3 kg. Compliance & Approvals: CE, UKCA, UL, CSA, FM, RCM, CCC. Hazardous Location: ATEX, IECEx, Class I Div 2. Marine: ABS, BV, DNV, LRS, NK, RMRS, CCS. Environmental Product Declaration (EPD). Global Warming Potential: 334.2 kg CO₂ eq.
