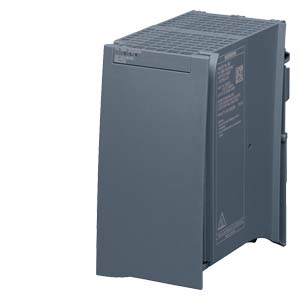

Siemens S7-1500 SIMATIC PM 1507 Load Power Supply 24 V DC/8A

Input: type of the power supply network: 1-phase AC. supply voltage at AC: Automatic range selection. supply voltage: 120 V/230 V. input voltage 1 at AC: 85 ... 132 V. input voltage 2 at AC: 170 ... 264 V. wide range input: No. overvoltage overload capability: 2.3 × Vin rated, 1.3 ms. buffering time for rated value of the output current in the event of power failure minimum: 20 ms. operating condition of the mains buffering: at Vin = 93/187 V. line frequency: 50/60 Hz. line frequency: 45 ... 65 Hz. input current: at rated input voltage 120 V: 3.7 A. at rated input voltage 230 V: 1.7 A. current limitation of inrush current at 25 °C maximum: 62 A. duration of inrush current limiting at 25 °C: maximum: 3 ms. I2t value maximum: 12 A²·s. fuse protection type: T 6.3,15 A/250 V (not accessible). fuse protection type in the feeder: Recommended miniature circuit breaker: 16 A characteristic B or 10 A characteristic C. Output: voltage curve at output: Controlled, isolated DC voltage. output voltage at DC rated value: 24 V. output voltage: at output 1 at DC rated value: 24 V. output voltage adjustable: No. relative overall tolerance of the voltage: 1 %. relative control precision of the output voltage. on slow fluctuation of input voltage: 0.1 %. on slow fluctuation of ohm loading: 0.1 %. residual ripple: maximum: 50 mV. voltage peak: maximum: 150 mV. display version for normal operation: LED green for 24 V OK; LED red for error; LED yellow for stand-by. behavior of the output voltage when switching on: No overshoot of Vout (soft start). response delay maximum: 1.5 s. voltage increase time of the output voltage: typical: 10 ms. output current: rated value: 8 A. rated range: 0 ... 8 A. supplied active power typical: 192 W. short-term overload current: on short-circuiting during the start-up typical: 35 A. at short-circuit during operation typical: 35 A. duration of overloading capability for excess current: on short-circuiting during the start-up: 70 ms. at short-circuit during operation: 70 ms. bridging of equipment: Yes. number of parallel-switched equipment resources for increasing the power: 2. efficiency: efficiency in percent: 90 %. power loss [W]: at rated output voltage for rated value of the output current typical: 21 W.
