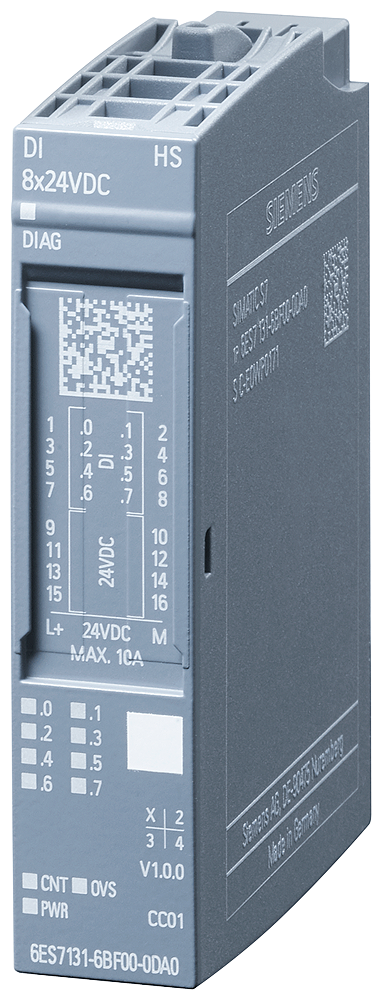

SIMATIC ET 200SP DI 8x24 V DC HS
SKU: 6ES7131-6BF00-0DA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP, digital input module, DI 8x 24 V DC High Speed, pack quantity: one unit, three operating modes: DI, 4x counters, oversampling, appropriate for BU type A0, colour code CC01.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Input current:
Current consumption, max: 70 mA; without sensor supply.
24 V encoder supply:
Short-circuit protection: per channel, electronic.
Output current max: 700 Ma.
Typical power loss: 1.5 W.
Digital inputs:
Number of digital inputs: 8.
Source/sink input: P-reading.
Pulse extension.
Length: 2 s; 50 MS, 100 MS, 200 MS, 500 MS, 1 s, 2 s.
Input voltage:
Rated value (DC): 24 V.
For signal "0": -30 to +5 V.
For signal "1": +11 to +30V.
Input current for signal "1", typical: 2.5 Ma.
Input delay (for rated value of input voltage):
For standard inputs: Parameterizable: none / 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 MS.
For interrupt inputs: parameterizable.
For technological functions: parameterizable.
Cable length:
Shielded, max: 50 m.
Unshielded, max: 50 m.
Connectable encoders: 2-wire sensor, permissible quiescent current max: 1.5 mA.
Isolation tested with 707 V DC (type test).
Ambient temperature during operation:
Horizontal installation, min: -30 °C; < 0 °C as of FS04.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C; < 0 °C as of FS04.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 5 000 m; Restrictions for installation altitudes > 2000 m.
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
