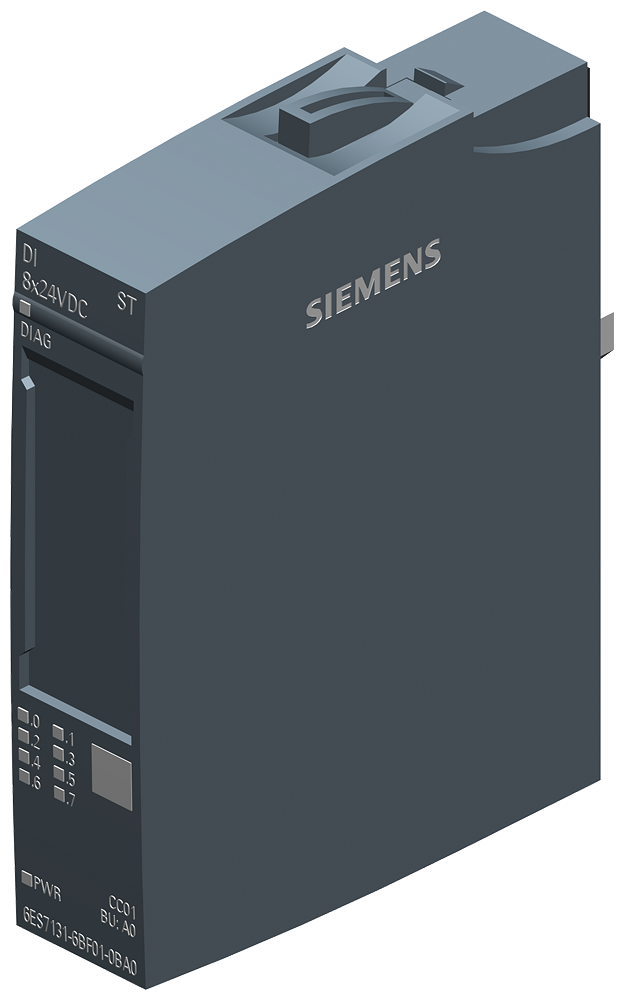

SIMATIC ET 200SP DI 8x24 VDC ST
SKU: 6ES7131-6BF01-0BA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP, Digital input module, DI 8x 24V DC Standard, type 3 (IEC 61131), sink input (PNP, P-reading).
Packaging unit: 1 piece, compatible with BU-type A0, colour code CC01, input delay time 0, 05.20 Ms, diagnostic module for supply voltage, wire break, and sensor supplies short circuit.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Input current:
Current consumption, max: 50 mA; All channels are supplied from the encoder supply.
Encoder supply:
Number of outputs: 8.
Output voltage, min: 19.2 V.
Short-circuit protection (per module).
24 V encoder supply:
Short-circuit protection.
Output current, max: 700 mA.
Output current per channel, max: 700 mA.
Output current per module, max: 700 mA.
Typical power loss: 1 W; 24 V, 8 inputs supplied via encoder supply.
Digital inputs:
Number of digital inputs: 8.
Digital inputs, parameterizable.
Source/sink input: P-reading.
Input characteristic curve in accordance with IEC 61131, type 3.
Input voltage:
Rated value (DC): 24 V.
For signal "0": -30 to +5 V.
For signal "1": +11 to +30V.
Input current for signal "1", typical: 2.5 mA.
Cable length:
Shielded, max: 1 000 m.
Unshielded, max: 600 m.
Connectable encoders:
2-wire sensor, permissible quiescent current max: 1.5 mA.
Isolation tested with 707 V DC (type test).
Ambient temperature during operation:
Horizontal installation, min: -30 °C; < 0 °C as of FS02.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C; < 0 °C as of FS02.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 5 000 m; Restrictions for installation altitudes > 2000 m.
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
