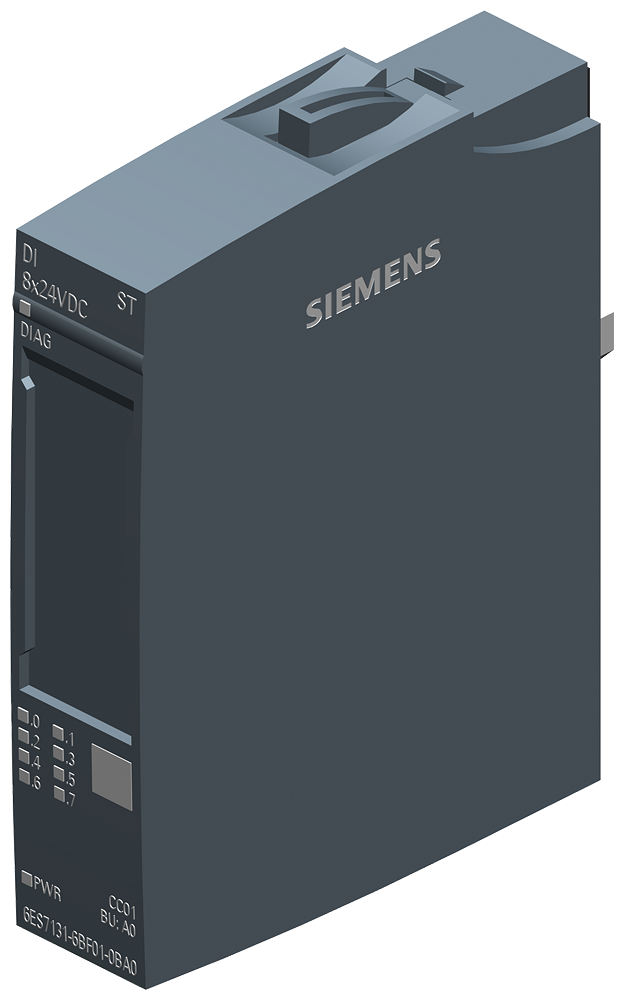

SIMATIC ET 200SP DI 8x24VDC BA PU 10

Specifications: Supply voltage: Rated value (DC): 24 V. Permissible range, lower limit (DC): 19.2 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection. Input current: Current consumption, max: 70 mA; All channels are supplied from the encoder supply. Encoder supply: Number of outputs: 8. Output voltage, min: 19.2 V. Short-circuit protection: per module. 24 V encoder supply: Short-circuit protection. Output current per channel, max: 700 Ma. Output current per module, max: 700 mA. Typical power loss: 1.6 W; 24 V, 8 inputs supplied via encoder supply. Digital inputs: Number of digital inputs: 8. Digital inputs, parameterizable. Source/sink input: P-reading. Input characteristic curve in accordance with IEC 61131, type 1. Input characteristic curve in accordance with IEC 61131, type 2. Input characteristic curve in accordance with IEC 61131, type 3. Input voltage: Rated value (DC): 24 V. For signal "0": -30 to +5 V. For signal "1": +11 to +30V. Input current for signal "1", typical: 6.8 mA. Input delay (for rated value of input voltage) for standard inputs: Parameterizable: 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 MS (in each case + delay of 30 to 500 µs, depending online length). At "0" to "1", min: 0.05 MS. At "0" to "1", max: 20 MS. At "1" to "0", min: 0.05 MS. At "1" to "0", max: 20 MS. Cable length: Shielded, max: 1 000 m. Unshielded, max: 600 m. Connectable encoders: 2-wire sensor, permissible quiescent current max: 2 mA. Isolation tested with 707 V DC (type test). Ambient temperature during operation: Horizontal installation, min: -30 °C; < 0 °C as of FS03. Horizontal installation, max: 60 °C. Vertical installation, min: -30 °C; < 0 °C as of FS03. Vertical installation, max: 50 °C. Installation altitude above sea level, max: 5 000 m; Restrictions for installation altitudes > 2000 m. Width: 15 mm. Height: 73 mm. Depth: 58 mm.
