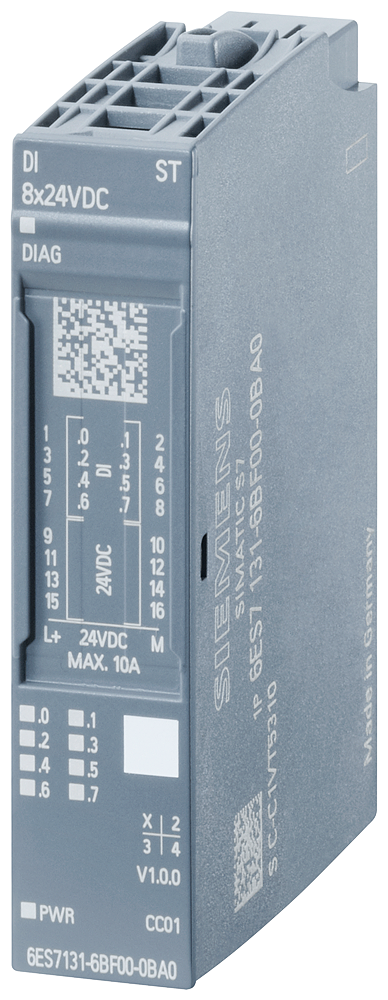

SIMATIC ET 200SP DI 8x24VDC ST PU 10
SKU: 6ES7131-6BF01-2BA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP, digital input module, DI 8x 24V DC standard, input type 3 (IEC 61131), sink input (PNP), Packing unit: 10 pieces, appropriate for BU type A0, colour code CC01, input delay 0.05–20 MS; diagnostics module for: wire break, supply voltage, and short circuits in the encoder power supply.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Input current:
Current consumption, max: 50 mA; All channels are supplied from the encoder supply.
Encoder supply:
Number of outputs: 8.
Output voltage, min: 19.2 V.
Short-circuit protection: per module.
24 V encoder supply:
Short-circuit protection.
Output current, max: 700 mA.
Output current per channel, max: 700 Ma.
Output current per module, max: 700 mA.
Typical power loss: 1 W; 24 V, 8 inputs supplied via encoder supply.
Digital inputs:
Number of digital inputs: 8.
Digital inputs, parameterizable.
Source/sink input: P-reading.
Input characteristic curve in accordance with IEC 61131, type 3.
Input voltage:
Rated value (DC): 24 V.
For signal "0": -30 to +5 V.
For signal "1": +11 to +30V.
Input current for signal "1", typical: 2.5 Ma.
Input delay (for rated value of input voltage) for standard inputs:
Parameterizable: 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 MS (in each case + delay of 30 to 500 µs, depending online length).
At "0" to "1", min: 0.05 MS.
At "0" to "1", max: 20 MS.
At "1" to "0", min: 0.05 MS.
At "1" to "0", max: 20 MS.
Cable length:
Shielded, max: 1 000 m.
Unshielded, max: 600 m.
Connectable encoders: 2-wire sensor, permissible quiescent current max: 1.5 mA.
Isolation tested with 707 V DC (type test).
Ambient temperature during operation:
Horizontal installation, min: -30 °C; < 0 °C as of FS02.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C; < 0 °C as of FS02.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 5 000 m; Restrictions for installation altitudes > 2000 m.
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
