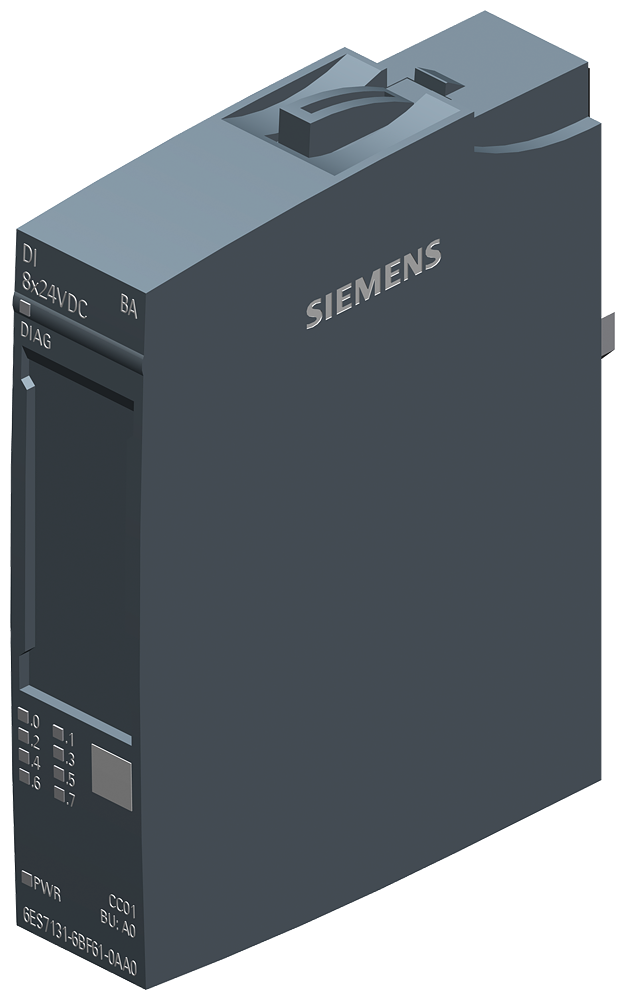

SIMATIC ET 200SP DI 8x24 VDC SRC BA
SKU: 6ES7131-6BF61-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Digital input module SIMATIC ET 200SP, type 1 (IEC 61131), source input (NPN, M-reading), DI 8x 24V DC SRC BA One piece of packaging, compatible with BU-type A0, colour code CC02, input delay duration of 0.05–20 MS, and supply voltage module diagnostics.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Input current:
Current consumption (rated value): 4.5 Ma.
Current consumption, max: 53 mA.
Typical power loss: 1.5 W.
Digital inputs:
Number of digital inputs: 8.
Digital inputs, parameterizable.
Source/sink input: Sourcing.
Input characteristic curve in accordance with IEC 61131, type 1.
Input voltage:
Rated value (DC): 24 V.
For signal "0": -30 to +5 V (reference potential is L+).
For signal "1": +11 to +30V (reference potential is L+).
Input current for signal "1", typical: 6 mA.
Input delay (for rated value of input voltage) for standard inputs:
Parameterizable: 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 MS (in each case + delay of 30 to 500 µs, depending online length).
At "0" to "1", min: 0.05 MS.
At "0" to "1", max: 20 MS.
At "1" to "0", min: 0.05 MS.
At "1" to "0", max: 20 MS.
Cable length:
Shielded, max: 1 000 m.
Unshielded, max: 200 m.
Connectable encoders: 2-wire sensor, permissible quiescent current max: 1.5 mA.
Isolation tested with 707 V DC (type test).
Ambient temperature during operation:
Horizontal installation, min: -30 °C; < 0 °C as of FS02.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C; < 0 °C as of FS02.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 5 000 m; Restrictions for installation altitudes > 2000 m.
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
