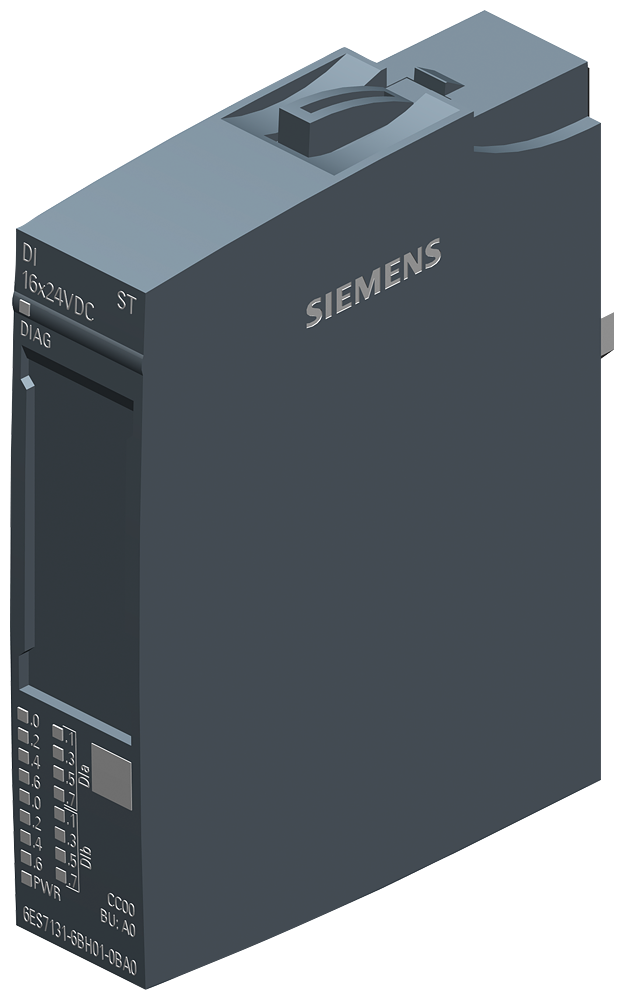

SIMATIC ET 200SP DI 16x24VDC ST
SKU: 6ES7131-6BH01-0BA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP, Digital input module, DI 16x24V DC Standard, type 3 (IEC 61131), sink input (PNP, P-reading), One piece of packaging, compatible with BU-type A0, colour coded CC00, input delay time of 0. 05..20 MS, diagnostic supply voltage, and diagnostic wire break.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage:
Rated value (DC): 24 V.
Permissible range, lower limit (DC): 19.2 V.
Permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection.
Input current:
Current consumption, max: 90 mA.
Typical power loss: 1.7 W.
Digital inputs:
Number of digital inputs: 16.
Digital inputs, parameterizable.
Source/sink input: P-reading.
Input characteristic curve in accordance with IEC 61131, type 3.
Input current for signal "1", 2.5 Ma.
Cable length:
Shielded, max: 1 000 m.
Unshielded, max: 600 m.
Connectable encoders: 2-wire sensor, permissible quiescent current max: 1.5 mA.
Isolation tested with 707 V DC (type test).
Ambient temperature during operation:
Horizontal installation, min: -30 °C; < 0 °C as of FS02.
Horizontal installation, max: 60 °C.
Vertical installation, min: -30 °C; < 0 °C as of FS02.
Vertical installation, max: 50 °C.
Installation altitude above sea level, max: 5 000 m; Restrictions for installation altitudes > 2000 m.
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
