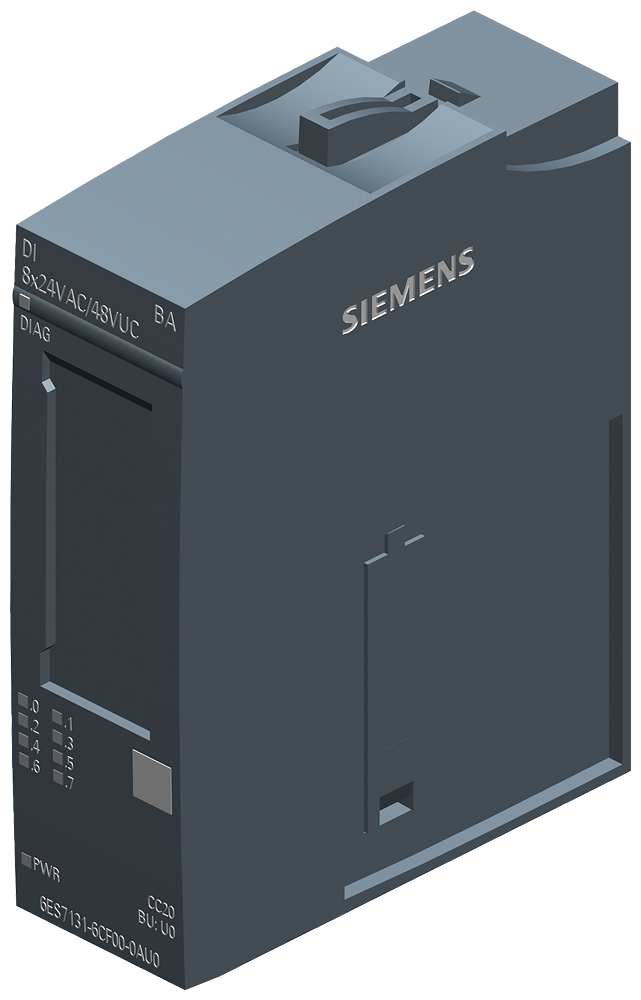

SIMATIC ET 200SP DI 8x24VAC/48VUC BA
SKU: 6ES7131-6CF00-0AU0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP digital input module with 8x 24 V AC..48 V UC Basic, packing quantity: 1 unit, suited for BU type U0, colour code CC20, and module diagnostics.
General information:
Product type designation: DI 8x24VAC/48VUC BA.
HW functional status: From FS02.
Firmware version: V0.0.
FW update possible: No.
usable BaseUnits: BU type U0.
Product function:
I&M data: Yes; I&M0 to I&M3.
Isochronous mode: No.
suitable for operation on PROFINET R1 Ims: Yes.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V15.
STEP 7 configurable/integrated from version: V5.6.
PROFIBUS from GSD version/GSD revision: One GSD file each, Revision 3 and 5 and higher.
PROFINET from GSD version/GSD revision: GSDML V2.3.
Operating mode:
DI: Yes.
Counter: No.
Oversampling: No.
MSI: No.
Supply voltage:
Rated value (DC): 48 V.
permissible range, lower limit (DC): 40.8 V.
permissible range, upper limit (DC): 57.6 V.
Rated value (AC): 48 V; 24 V/48 V; 50 Hz/60 Hz.
permissible range, lower limit (AC): 40.8 V.
permissible range, upper limit (AC): 52.8 V.
Reverse polarity protection: Yes.
Input current:
Current consumption, max.: 70 mA; without sensor supply.
Encoder supply:
Number of outputs: 8.
Short-circuit protection: Yes; Per module, 5x 20 mm fuse, 2 A/250 V, quick-response, replaceable.
Output current:
up to 60 °C, max.: 1 A.
24 V encoder supply:
24 V: No.
Power loss:
Power loss, typ.: 1.5 W.
Buy currently uses Select Automation shop pricing and checkout.
Address area:
Address space per module:
Address space per module, max.: 1 byte.
Hardware configuration:
Automatic encoding:
Mechanical coding element: Yes.
Type of mechanical coding element: type C.
Selection of BaseUnit for connection variants:
1-wire connection: BU type U0.
2-wire connection: BU type U0.
3-wire connection: BU type U0 + Potential distributor module.
4-wire connection: BU type U0 + Potential distributor module.
Digital inputs:
Number of digital inputs: 8.
Source/sink input: P-reading.
Input characteristic curve in accordance with IEC 61131, type 1: Yes.
Input characteristic curve in accordance with IEC 61131, type 2: No.
Input characteristic curve in accordance with IEC 61131, type 3: No.
Pulse extension: No.
Input voltage:
for signal "0": AC/DC < 10 V.
for signal "1": AC > 14 V, DC > 34 V.
Input current:
for signal "1", typ.: 3.5 mA.
Input delay (for rated value of input voltage):
for standard inputs:
parameterizable: No.
at "0" to "1", max.: 15 ms.
at "1" to "0", max.: 20 ms.
Cable length:
shielded, max.: 1 000 m.
unshielded, max.: 600 m.
Encoder:
Connectable encoders:
2-wire sensor: Yes.
Interrupts/diagnostics/status information:
Diagnostics function: Yes.
Alarms:
Diagnostic alarm: Yes.
Diagnoses:
Diagnostic information readable: Yes.
Monitoring the supply voltage: Yes.
Monitoring of encoder power supply: Yes.
Group error: Yes.
Diagnostics indication LED:
Monitoring of the supply voltage (PWR-LED): Yes; green PWR LED.
Channel status display: Yes; green LED.
for channel diagnostics: No.
for module diagnostics: Yes; green/red DIAG LED.
Potential separation:
Potential separation channels:
between the channels: No.
between the channels and backplane bus: Yes.
between the channels and the power supply of the electronics: No.
Isolation:
Isolation tested with: 1 200 V DC between supply voltage and backplane bus.
Standards, approvals, certificates:
Suitable for safety functions: No.
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: -30 °C.
horizontal installation, max.: 60 °C.
vertical installation, min.: -30 °C.
vertical installation, max.: 50 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 2 000 m; On request: Installation altitudes greater than 2 000 m.
Dimensions:
Width: 20 mm.
Height: 73 mm.
Depth: 58 mm.
Weights:
Weight, approx.: 40 g.
