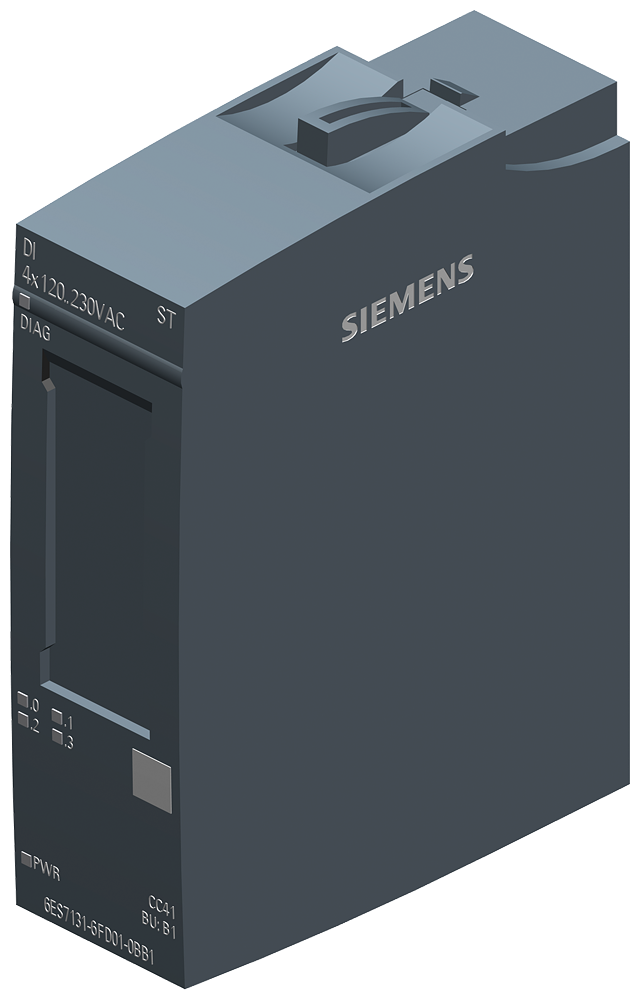

SIMATIC ET 200SP DI 4x120 ... 230 V AC ST
SKU: 6ES7131-6FD01-0BB1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Digital input module, DI 4x 120..230V AC Standard, type 3 (IEC 61131), SIMATIC ET 200SP.
Packing unit: one component, fits the BU-type B1.
Colour code: CC41, module diagnostics.
General information:
Product type designation: DI 4x120 ... 230 V AC ST.
Firmware version: V0.0.
FW update possible: No.
usable BaseUnits: BU type B1.
Colour code for module-specific colour identification plate: CC41
Product function:
I&M data: Yes; I&M0 to I&M3.
Isochronous mode: No.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V14.
STEP 7 configurable/integrated from version: V5.5 SP3.
PCS 7 configurable/integrated from version: V10.0.
PROFIBUS from GSD version/GSD revision: One GSD file each, Revision 3 and 5 and higher.
PROFINET from GSD version/GSD revision: GSDML V2.3.
Operating mode:
DI: Yes.
Counter: No.
Oversampling: No.
MSI: No.
Supply voltage:
Rated value (AC): 230 V.
Reverse polarity protection: No.
Input current:
Current consumption (rated value): 10 mA.
Encoder supply:
Number of outputs: 4.
Short-circuit protection: No; when using BU type B1, a fuse with 10 A tripping current must be provided.
Output current:
up to 60 °C, max.: 10 A.
Power loss:
Power loss, typ.: 1 W; Active power, load voltage 230 V, all inputs connected with 230 V, 50 Hz.
Buy currently uses Select Automation shop pricing and checkout.
Address area:
Address space per module:
Inputs: 1 byte; + 1 byte for QI information.
Hardware configuration:
Automatic encoding: Yes.
Mechanical coding element: Yes.
Selection of BaseUnit for connection variants:
1-wire connection: BU type B1.
2-wire connection: BU type B1.
3-wire connection: BU type B1.
4-wire connection: BU type B1 + Potential distributor module.
Digital inputs:
Number of digital inputs: 4.
Input characteristic curve in accordance with IEC 61131, type 3: Yes.
Input voltage:
Rated value (AC): 230 V.
for signal "0": 0V AC to 40V AC.
for signal "1": 74 V AC to 264 V AC.
Input current:
for signal "1", typ.: 10.8 mA.
Input delay (for rated value of input voltage):
for standard inputs:
parameterizable: No.
at "0" to "1", max.: 1.5 ms.
at "0" to "1", max.: 4 ms.
at "1" to "0", min.: 10 ms.
at "1" to "0", max.: 10 ms.
Cable length:
shielded, max.: 1 000 m.
unshielded, max.: 600 m.
Encoder:
Connectable encoders:
2-wire sensor: Yes.
Interrupts/diagnostics/status information:
Alarms:
Diagnostic alarm: No.
Hardware interrupt: No.
Diagnoses:
Monitoring the supply voltage: Yes.
Wire-break: No.
Short-circuit: No.
Diagnostics indication LED:
Monitoring of the supply voltage (PWR-LED): Yes; green PWR LED.
Channel status display: Yes; green LED.
for channel diagnostics: No.
for module diagnostics: Yes; green/red DIAG LED.
Potential separation:
Potential separation channels:
between the channels: No.
between the channels and backplane bus: Yes.
between the channels and the power supply of the electronics: No.
Isolation:
Isolation tested with: 2 545 V DC/2 s (routine test).
Standards, approvals, certificates:
Suitable for safety functions: No.
Ambient conditions:
Altitude during operation relating to sea level:
Ambient air temperature-barometric pressure-altitude: On request: Ambient temperatures lower than 0 °C (without condensation) and/or installation altitudes greater than 2 000 m.
Dimensions:
Width: 20 mm.
Height: 73 mm.
Depth: 58 mm.
Weights:
Weight, approx.: 36 g.
