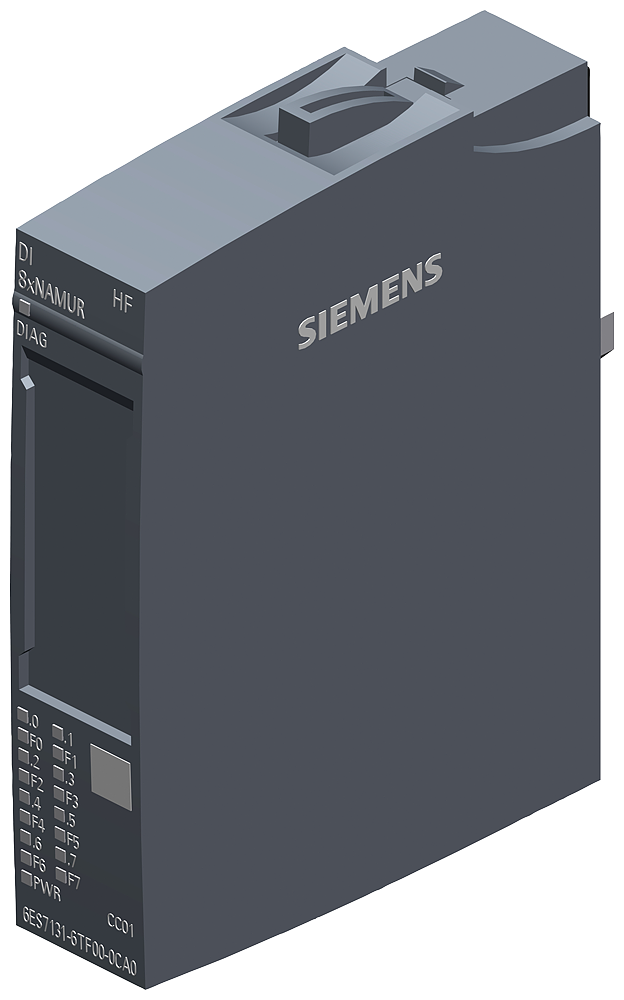

SIMATIC ET 200SP DI 8xNAMUR HF

Specifications: Supply voltage: Rated value (DC): 24 V. Permissible range, lower limit (DC): 19.2 V. Permissible range, upper limit (DC): 28.8 V. Reverse polarity protection. Input current: Current consumption (rated value): 17 mA. Current consumption, max: 90 mA. Encoder supply: Number of outputs: 8. Short-circuit protection: Electronic. NAMUR encoder supply: 8.2 V. Short-circuit protection. Typical power loss: 1.5 W. Digital inputs: Number of digital inputs: 8; NAMUR. Digital inputs, parameterizable. Pulse extension: 0.5 s, 1 s, 2 s. Edge evaluation: rising edge, falling edge, edge change. Signal change flutter: 2 to 32 signal changes. Flutter observation window: 0.5 s, 1 s to 100 s in 1-s steps. Input voltage (Rated value (DC)): 8.2 V. Input current for 10 k switched contact: For signal "0", min: 0.35 mA. For signal "0", max: 1.2 mA. For signal "1", min: 2.1 mA. For signal "1", max: 7 mA. Input current for unswitched contact: For signal "0", max. (permissible quiescent current): 0.5 mA. For signal "1", typical: 8 mA. Input current for NAMUR encoders: For signal "0", min: 0.35 mA. For signal "0", max: 1.2 mA. For signal "1", min: 2.1 mA. For signal "1", max: 7 mA. Maximum shielded cable length: 200 m. Isolation tested with 707 V DC (type test). Ambient temperature during operation: Horizontal installation, min: -30 °C. Horizontal installation, max: 60 °C. Vertical installation, min: -30 °C. Vertical installation, max: 50 °C. Installation altitude above sea level, max: 5 000 m; Restrictions for installation altitudes > 2000 m. Width: 15 mm. Height: 73 mm. Depth: 58 mm.
