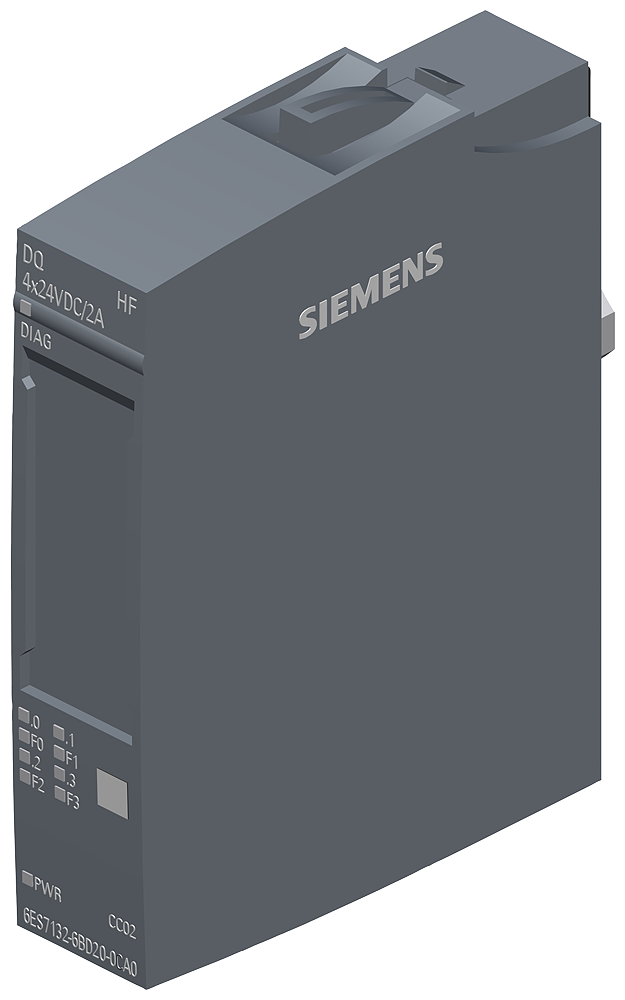

SIMATIC ET 200SP DQ 4x DC 24 V/2 A HF
SKU: 6ES7132-6BD20-0CA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The SIMATIC ET 200SP digital output module with DQ 4x 24VDC/2A High Feature is suitable for BU class A0.
Colour code CC02 indicates channel diagnostics.
Product phase-out since: 01.01.25.
General information:
Product type designation: DQ 4x DC 24 V/2 A HF.
HW functional status: From FS06.
Firmware version:
FW update possible: Yes.
usable BaseUnits: BU type A0.
Colour code for module-specific colour identification plate: CC02.
Product function:
I&M data: Yes; I&M0 to I&M3.
Isochronous mode: Yes.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V13 SP1 /.
STEP 7 configurable/integrated from version: V5.5 /.
PROFIBUS from GSD version/GSD revision: GSD Revision 5.
PROFINET from GSD version/GSD revision: GSDML V2.3.
Operating mode:
DQ: Yes.
DQ with energy-saving function: No
PWM: No.
Oversampling: No.
MSO: Yes.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
Input current:
Current consumption (rated value): 28 mA.
Current consumption, max.: 28 mA.
output voltage / header:
Rated value (DC): 24 V.
Power loss:
Power loss, typ.: 1 W.
Buy currently uses Select Automation shop pricing and checkout.
Address area:
Address space per module:
Address space per module, max.: 4 byte; 2 channels per submodule + QI information.
Hardware configuration:
Automatic encoding: Yes.
Mechanical coding element: Yes.
Type of mechanical coding element: Type A.
Selection of BaseUnit for connection variants:
1-wire connection: BU type A0.
2-wire connection: BU type A0.
3-wire connection: BU type A0 with AUX terminals or potential distributor module.
4-wire connection: BU type A0 + Potential distributor module.
Digital outputs:
Type of digital output: Source output (PNP, current-sourcing).
Number of digital outputs: 4.
Current-sinking: No.
Current-sourcing: Yes.
Digital outputs, parameterizable: Yes.
output characteristic acc. to IEC 61131, type 2: Yes.
Short-circuit protection: Yes; Electronic.
Response threshold, typ.: 2.8 to 5.2 A.
Limitation of inductive shutdown voltage to: L+ -(37 to 41V).
Controlling a digital input: Yes; Minimum current consumption 7 mA.
Switching capacity of the outputs:
with resistive load, max.: 2 A.
on lamp load, max.: 10 W.
Load resistance range:
lower limit: 12 Ω.
upper limit: 3 400 Ω.
Output current:
for signal "1" rated value: 2 A.
for signal "0" residual current, max.: 0.1 Ma.
Output delay with resistive load:
"0" to "1", typ.: 50 µs.
"1" to "0", typ.: 100 µs.
Parallel switching of two outputs:
for uprating: No.
Switching frequency:
with resistive load, max.: 100 Hz.
with inductive load, max.: 2 Hz.
on lamp load, max.: 10 Hz.
Total current of the outputs:
Current per channel, max.: 2 A.
Current per module, max.: 8 A.
Total current of the outputs (per module):
horizontal installation:
up to 40 °C, max.: 8 A.
up to 50 °C, max.: 6 A.
up to 60 °C, max.: 4 A.
vertical installation:
up to 30 °C, max.: 8 A.
up to 40 °C, max.: 6 A.
up to 50 °C, max.: 4 A.
Cable length:
shielded, max.: 1 000 m.
unshielded, max.: 600 m.
Isochronous mode:
Bus cycle time (TDP), min.: 500 µs.
Jitter, max.: 8 µs.
Interrupts/diagnostics/status information:
Diagnostics function: Yes.
Substitute values connectable: Yes.
Alarms:
Diagnostic alarm: Yes.
Diagnoses:
Monitoring the supply voltage: Yes.
Wire-break: Yes; channel by channel.
Short-circuit to M: Yes; channel by channel.
Short-circuit to L+: Yes; channel by channel.
Group error: Yes.
Diagnostics indication LED:
Monitoring of the supply voltage (PWR-LED): Yes; green PWR LED.
Channel status display: Yes; green LED.
for channel diagnostics: Yes; red LED.
for module diagnostics: Yes; green/red DIAG LED.
Potential separation:
Potential separation channels:
between the channels: No.
between the channels and backplane bus: Yes.
Isolation:
Isolation tested with: 707 V DC (type test).
Standards, approvals, certificates:
Suitable for safety functions: No.
Suitable for safety-related tripping of standard modules Yes; see FAQ Entry ID: 39198632.
Ecological footprint:
environmental product declaration: Yes.
Highest safety class achievable in safety mode:
Performance level according to ISO 13849-1: PL d.
SIL acc. to IEC 61508: SIL 2.
Ambient conditions:
Ambient temperature during operation.
horizontal installation, min.: -30 °C; < 0 °C as of FS06.
horizontal installation, max.: 60 °C.
vertical installation, min.: -30 °C; < 0 °C as of FS06.
vertical installation, max.: 50 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual.
Dimensions:
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
Weights:
Weight, approx.: 30 g.
