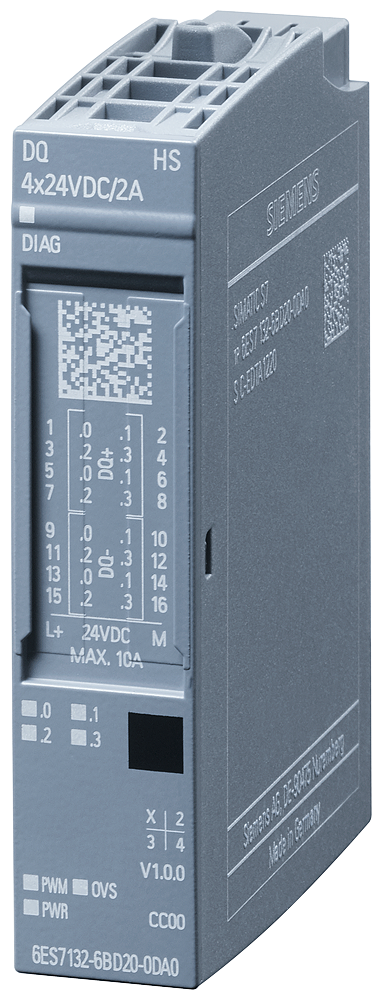

SIMATIC ET 200SP DQ 4x24 V DC/2 A HS
SKU: 6ES7132-6BD20-0DA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP, digital output module with DQ 4x 24 V DC/2A High Speed.
Pack quantity: One unit appropriate for BU type A0.
Colour code: CC00.
There are three operational modes: DQ, Oversampling, and PWM Module Diagnostics.
General information:
Product type designation: DQ 4x24 V DC/2 A HS.
HW functional status: From FS05.
Firmware version:
FW update possible: Yes.
usable BaseUnits: BU type A0.
Colour code for module-specific colour identification plate: CC00.
Product function:
I&M data: Yes; I&M0 to I&M3.
Isochronous mode: Yes; Operating modes DQ and OVS only.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: STEP 7 V15.1 or higher.
STEP 7 configurable/integrated from version: via GSD as of V5.6 HF4.
PROFIBUS from GSD version/GSD revision: One GSD file each, Revision 3 and 5 and higher.
PROFINET from GSD version/GSD revision: GSDML V2.33.
Operating mode:
DQ: Yes.
DQ with energy-saving function: Yes; Valve control
PWM: Yes.
Cam control (switching at comparison values): Yes; Via MtM (module-to-module communication).
Oversampling: Yes.
MSO: No.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
Input current:
Current consumption, max.: 50 mA; without load.
output voltage / header:
Rated value (DC): 24 V.
Power loss:
Power loss, typ.: 2.5 W; at 24 V, 25 °C, DQ mode, 2 A per channel.
Buy currently uses Select Automation shop pricing and checkout.
Address area:
Address space per module:
Inputs: 1 byte; Max. 14 bytes in the cam control operating mode.
Outputs: 1 byte; Max. 16 bytes in the oversampling operating mode.
Hardware configuration:
Automatic encoding: Yes.
Mechanical coding element: Yes.
Type of mechanical coding element: Type A.
Selection of BaseUnit for connection variants:
2-wire connection: BU type A0.
3-wire connection: BU type A0 with AUX terminals or potential distributor module.
4-wire connection: BU type A0 + Potential distributor module.
Digital outputs:
Type of digital output: Source output (PNP, current-sourcing).
Number of digital outputs: 4.
Current sinking: No.
Current sourcing: Yes; Push-pull output.
Digital outputs, parameterizable: Yes.
Short-circuit protection: Yes.
Response threshold, typ.: 6 A.
Limitation of inductive shutdown voltage to: M (-1 V).
Controlling a digital input: No.
Digital output functions, parameterizable:
Switching tripped by comparison values: Yes.
Number of cam tracks, max.: 4.
Number of cams per module, max.: 16.
Number of cams per track, max.: 16.
Supported axis types: Linear axes and rotary axes with modulo function.
Hysteresis: Yes.
Pulsed cam output: Yes.
Range of values for comparison values, max.: -2,147,483,648 to 2,147,483,647 (user-specific within this range).
Freely usable digital output: Yes.
PWM output: Yes.
Number, max.: 4.
Cycle duration, parameterizable: Yes; 0 ms, 0.2 ms, 0.4 ms, 0.93 ms, 1.33 ms, 4.27 ms, 10.67 ms, 21.33 ms, 34.13 ms, 59.73 ms.
Resolution of the duty cycle: 0.1 %.
Digital output with oversampling: Yes.
Number, max.: 4.
Values per cycle, max.: 32.
Resolution, min.: 100 µs.
Switching capacity of the outputs:
with resistive load, max.: 2 A.
on lamp load, max.: 10 W.
Load resistance range:
lower limit: 12 Ω.
upper limit: 3 400 Ω.
Output current:
for signal "1" rated value: 2 A.
for signal "0" residual current, max.: 0.1 mA.
Output delay with resistive load:
"0" to "1", max.: 1 µs.
"1" to "0", max.: 1 µs.
Parallel switching of two outputs:
for uprating: No.
Switching frequency:
with resistive load, max.: 5 Hz.
with inductive load max.: 5 Hz.
on lamp load, max.: 5 Hz.
Total current of the outputs:
Current per channel, max.: 2 A.
Current per module, max.: 8 A.
Total current of the outputs (per module):
horizontal installation:
up to 30 °C, max.: 8 A; DQ mode.
up to 40 °C, max.: 6.9 A; DQ mode.
up to 50 °C, max.: 4.7 A; DQ mode.
up to 60 °C, max.: 2.5 A; DQ mode.
vertical installation:
up to 30 °C, max.: 7.2 A; DQ mode.
up to 40 °C, max.: 5.6 A; DQ mode.
up to 50 °C, max.: 4 A; DQ mode.
Cable length:
shielded, max.: 50 m.
unshielded, max.: 50 m.
Isochronous mode:
Execution and activation time (TCO), min.: 40 µs.
Bus cycle time (TDP), min.: 125 µs.
Jitter, max.: 1 µs.
Interrupts/diagnostics/status information:
Diagnostics function: Yes.
Substitute values connectable: Yes.
Alarms:
Diagnostic alarm: Yes.
Diagnoses:
Diagnostic information readable: Yes.
Monitoring the supply voltage: Yes.
Wire-break: No.
Short-circuit: Yes; Module-wise.
Group error: Yes.
Diagnostics indication LED:
Monitoring of the supply voltage (PWR-LED): Yes; green PWR LED.
Channel status display: Yes; green LED.
for channel diagnostics: No.
for module diagnostics: Yes; green/red DIAG LED.
Potential separation:
Potential separation channels:
between the channels: No.
between the channels and backplane bus: Yes.
Isolation:
Isolation tested with: 707 V DC (type test).
Standards, approvals, certificates:
Suitable for safety functions: No.
Suitable for safety-related tripping of standard modules: No.
Ambient conditions:
Ambient temperature during operation.
horizontal installation, min.: -30 °C.
horizontal installation, max.: 60 °C.
vertical installation, min.: -30 °C.
vertical installation, max.: 50 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual.
Dimensions:
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
Weights:
Weight, approx.: 31 g.
