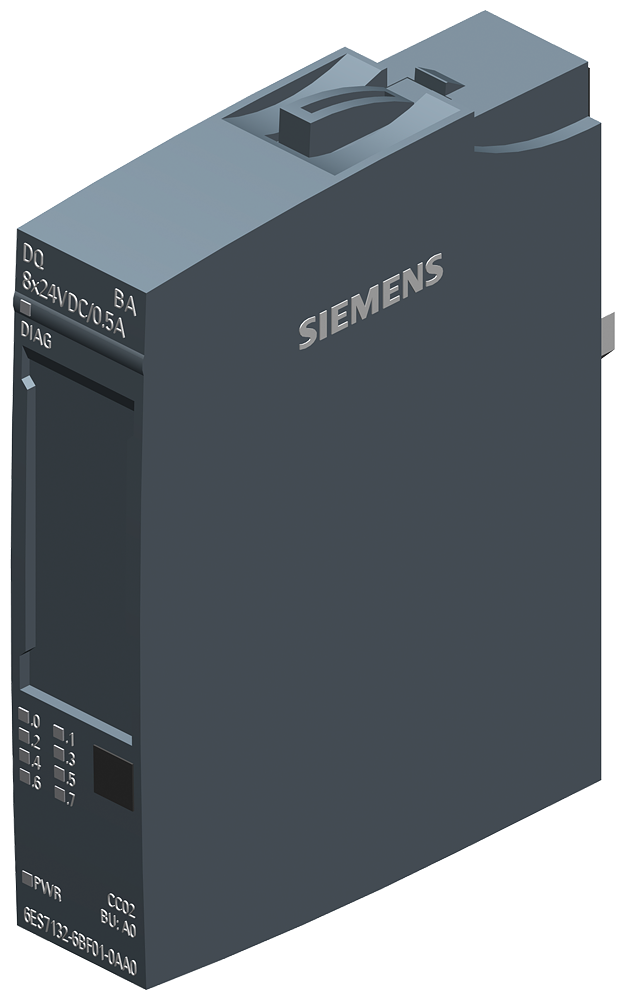

SIMATIC ET 200SP DQ 8x24VDC/0.5A BA
SKU: 6ES7132-6BF01-0AA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP Digital Output Module with DQ 8x 24V DC/0.5A Basic and Source Output (PNP, P-switching).
Packing unit: one component, fits into BU-type A0.
Colour Code: CC02.
Substitute value output.
Module diagnostics for supply voltage.
General information:
Product type designation: DQ 8x24VDC/0.5A BA.
HW functional status: From FS02.
Firmware version: V0.0.
FW update possible: No.
usable BaseUnits: BU type A0.
Colour code for module-specific colour identification plate: CC02.
Product function:
I&M data: Yes; I&M0 to I&M3.
Isochronous mode: No.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V14.
STEP 7 configurable/integrated from version: V5.5 SP3.
PROFIBUS from GSD version/GSD revision: One GSD file each, Revision 3 and 5 and higher.
PROFINET from GSD version/GSD revision: GSDML V2.3.
Operating mode:
DQ: Yes.
DQ with energy-saving function: No.
PWM: No.
Oversampling: No.
MSO: No.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
Input current:
Current consumption, max.: 45 mA; without load.
output voltage / header:
Rated value (DC): 24 V.
Power loss:
Power loss, typ.: 1 W.
Address area:
Address space per module:
Address space per module, max.: 1 byte.
Hardware configuration:
Automatic encoding: Yes.
Mechanical coding element: Yes.
Type of mechanical coding element: Type A.
Selection of BaseUnit for connection variants:
1-wire connection: BU type A0.
2-wire connection: BU type A0.
3-wire connection: BU type A0 with AUX terminals or potential distributor module.
4-wire connection: BU type A0 + Potential distributor module.
Buy currently uses Select Automation shop pricing and checkout.
Digital outputs:
Type of digital output: Source output (PNP, current sourcing).
Number of digital outputs: 8.
Current sourcing: Yes.
Digital outputs, parameterizable: Yes.
Short-circuit protection: Yes; per channel, electronic.
Response threshold, typ.: 1 A.
Limitation of inductive shutdown voltage to Typ.: L+ (-50 V).
Controlling a digital input: Yes.
Switching capacity of the outputs:
with resistive load, max.: 0.5 A.
on lamp load, max.: 5 W.
Load resistance range:
lower limit: 48 Ω.
upper limit: 100 kΩ.
Output current:
for signal "1" rated value: 0.5 A.
for signal "1" permissible range, max.: 0.5 A.
for signal "0" residual current, max.: 10 µA.
Output delay with resistive load:
"0" to "1", max.: 100 µs; at rated load.
"1" to "0", max.: 150 µs; at rated load.
Parallel switching of two outputs:
for uprating: No.
for redundant control of a load: Yes.
Switching frequency:
with resistive load, max.: 100 Hz.
with inductive load, max.: 2 Hz.
on lamp load, max.: 10 Hz
Total current of the outputs:
Current per channel, max.: 0.5 A.
Current per module, max.: 4 A.
Total current of the outputs (per module):
horizontal installation:
up to 60 °C, max.: 4 A.
vertical installation:
up to 50 °C, max.: 4 A.
Cable length:
shielded, max.: 1 000 m.
unshielded, max.: 600 m.
Interrupts/diagnostics/status information:
Diagnostics function: Yes.
Substitute values connectable: Yes.
Alarms:
Diagnostic alarm: Yes.
Diagnoses:
Monitoring the supply voltage: Yes.
Wire-break: No.
Short-circuit: No.
Group error: Yes.
Diagnostics indication LED:
Monitoring of the supply voltage (PWR-LED): Yes; green PWR LED.
Channel status display: Yes; green LED.
for channel diagnostics: No.
for module diagnostics: Yes; green/red DIAG LED.
Potential separation:
Potential separation channels:
between the channels: No.
between the channels and backplane bus: Yes.
between the channels and the power supply of the electronics: No.
Isolation:
Isolation tested with: 707 V DC (type test).
Standards, approvals, certificates:
Suitable for safety functions: No.
Suitable for safety-related tripping of standard modules: Yes; see FAQ Entry ID: 39198632.
Highest safety class achievable in safety mode:
Performance level according to ISO: 13849-1 PL d.
SIL acc. to IEC 61508: SIL 2.
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: -30 °C; < 0 °C as of FS02.
horizontal installation, max.: 60 °C.
vertical installation, min.: -30 °C; < 0 °C as of FS02.
vertical installation, max.: 50 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual.
Dimensions:
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
Weights:
Weight, approx.: 30 g.
