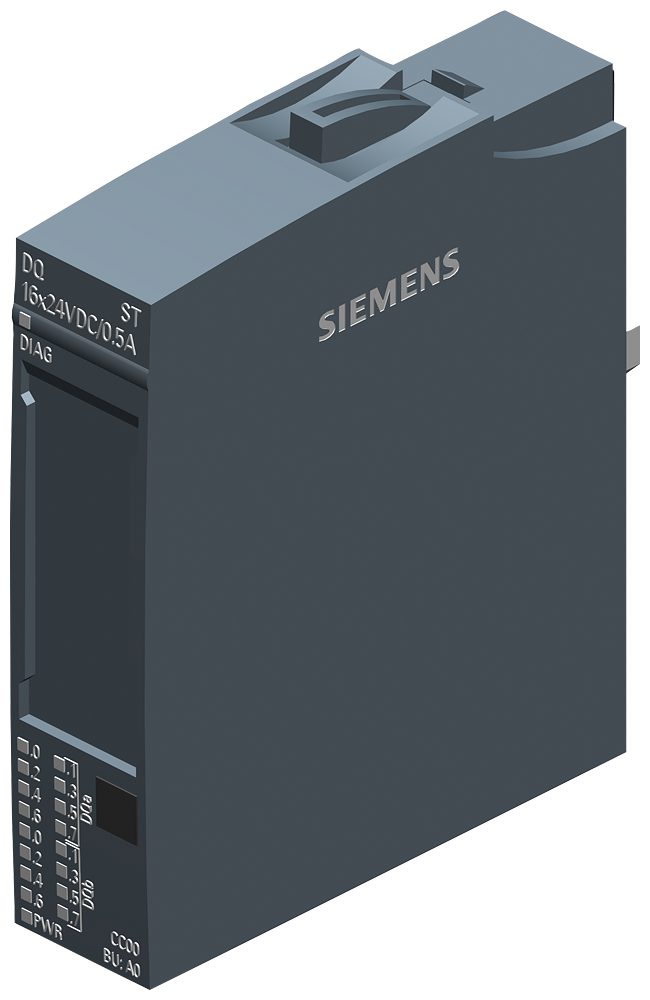

SIMATIC ET 200SP DQ 16x24 VDC/0.5 A ST
SKU: 6ES7132-6BH01-0BA0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP digital output module has DQ 16x 24V DC/0.5A standard and source output (PNP, P-switching).
Packing unit: one piece, fits BU-type A0.
Colour Code: CC00.
Substitute value output.
Module diagnostics include short-circuit to L+ and ground, wire break, and supply voltage.
General information:
Product type designation: DQ 16x24VDC/0.5A ST.
HW functional status: From FS03.
Firmware version: V0.0.
FW update possible: No.
usable BaseUnits: BU type A0.
Colour code for module-specific colour identification plate: CC00.
Product function:
I&M data: Yes; I&M0 to I&M3.
Isochronous mode: No.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V14.
STEP 7 configurable/integrated from version: V5.5 SP3.
PCS 7 configurable/integrated from version: V8.1 SP1.
PROFIBUS from GSD version/GSD revision: One GSD file each, Revision 3 and 5 and higher.
PROFINET from GSD version/GSD revision: GSDML V2.3.
Operating mode:
DQ: Yes.
DQ with energy-saving function: No.
PWM: No.
Oversampling: No.
MSO: No.
Buy currently uses Select Automation shop pricing and checkout.
Supply voltage:
Rated value (DC): 24 V.
permissible range, lower limit (DC): 19.2 V.
permissible range, upper limit (DC): 28.8 V.
Reverse polarity protection: Yes.
Input current:
Current consumption, max.: 60 mA; without load.
output voltage / header:
Rated value (DC): 24 V.
Power loss:
Power loss, typ.: 1 W.
Address area:
Address space per module:
Address space per module, max.: 2 byte; + 2 bytes for QI information.
Digital outputs:
Type of digital output: Source output (PNP, current sourcing).
Number of digital outputs: 16.
Current sinking: No.
Current sourcing: Yes.
Digital outputs, parameterizable: Yes.
Short-circuit protection: Yes.
Response threshold, typ.: 1 A; 0.7 to 1.3 A.
Open-circuit detection: Yes.
Limitation of inductive shutdown voltage to: Typ. L+ (-50 V).
Controlling a digital input: Yes.
Standards, approvals, certificates:
Suitable for safety functions: No.
Suitable for safety-related tripping of standard modules: Yes; see FAQ Entry ID: 39198632.
Highest safety class achievable in safety mode:
Performance level according to ISO 13849-1: PL d.
SIL acc. to IEC 61508: SIL 2.
Ambient conditions:
Ambient temperature during operation:
horizontal installation, min.: -30 °C; < 0 °C as of FS03.
horizontal installation, max.: 60 °C.
vertical installation, min.: -30 °C; < 0 °C as of FS03.
vertical installation, max.: 50 °C.
Altitude during operation relating to sea level:
Installation altitude above sea level, max.: 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual.
Dimensions:
Width: 15 mm.
Height: 73 mm.
Depth: 58 mm.
Weights:
Weight, approx.: 30 g.
