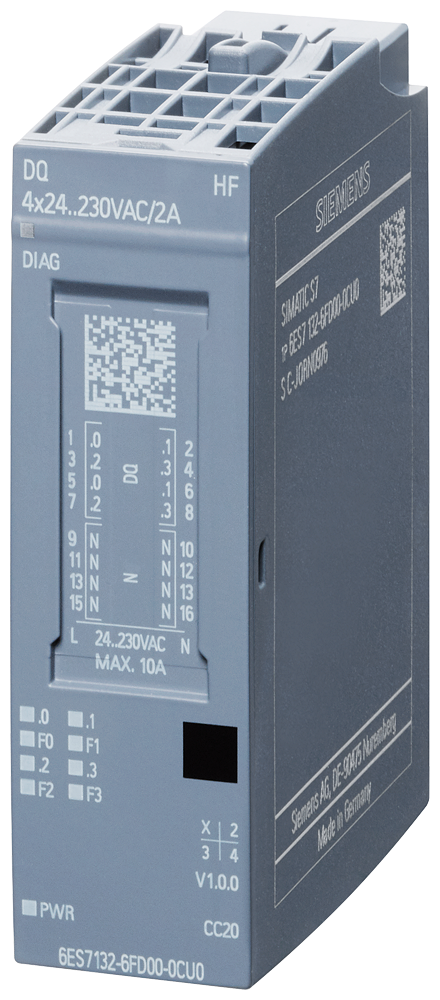

SIMATIC ET 200SP DQ 4x24 ... 230 V AC/2 A HF
SKU: 6ES7132-6FD00-0CU0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIMATIC ET 200SP, digital output module DQ 4x 24-230V AC/2A HF.
Packaging unit: one component.
There are two different modes: DQ and power control.
fits into BU-Type U0.
Colour code: CC20.
Channel diagnosis.
General information:
Product type designation: DQ 4x24 ... 230 V AC/2 A HF.
HW functional status: From FS03.
Firmware version:
FW update possible: Yes.
usable BaseUnits: BU type U0.
Colour code for module-specific colour identification plate: CC20.
Product function:
I&M data: Yes; I&M0 to I&M3.
Isochronous mode: No.
Engineering with:
STEP 7 TIA Portal configurable/integrated from version: V14.
STEP 7 configurable/integrated from version: STEP 7 V5.5 or higher.
PROFIBUS from GSD version/GSD revision: GSD as of Revision 5.
PROFINET from GSD version/GSD revision: GSDML V2.3.
Operating mode:
DQ: Yes.
DQ with energy-saving function: Yes.
PWM: No.
Oversampling: No.
MSO: No.
Phase control: Yes; Control area: 8.5 ... 100% of the phase angle.
Trailing-edge phase: No.
Half-wave: Yes.
Full-wave: Yes.
Supply voltage:
Rated value (AC): 230 V; 47 ... 63 Hz, max. rate of change of frequency 1 mHz/s.
permissible range, lower limit (AC): 20.4 V.
permissible range, upper limit (AC): 264 V.
Input current:
Current consumption (rated value): 8 mA; without load.
output voltage / header:
Rated value (AC): 230 V; 24V AC to 230V AC.
Power loss:
Power loss, typ.: 9 W; Active power, load voltage 230 V, all outputs loaded with 2 A, 50 Hz.
Address area:
Address space per module:
Inputs: + 1 byte for QI information.
Outputs: 8 byte.
Hardware configuration:
Automatic encoding: Yes.
Mechanical coding element: Yes.
Type of mechanical coding element: type C.
Selection of BaseUnit for connection variants:
1-wire connection: BU type U0.
2-wire connection: BU type U0.
3-wire connection: BU type U0 + Potential distributor module.
